Same model may have multiple batches, images only for reference.

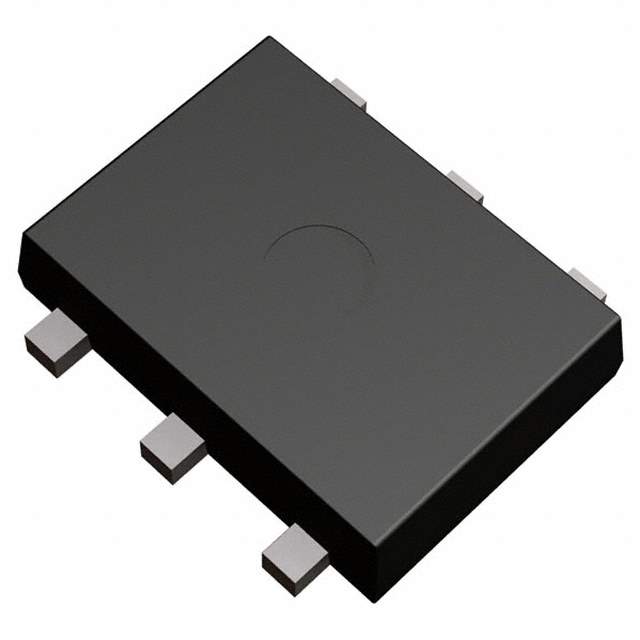

MP6Z1 Real Image
Same model may have multiple batches, images only for reference.

MP6Z1

Part No MP6Z1
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Arrays
Description TRANS NPN/PNP 50V 3A 6MPT
Datasheet
MP6Z1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity NPN, PNP
Maximum Current Collector 3A
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Max Vce (sat) 350mV @ 50mA, 1A / 400mV @ 50mA, 1A
Collector Cut-off Current(Max) 1μA (ICBO)
Typical Gain (hFE) (Min) 180 @ 50mA, 3V
Maximum Power Dissipation 2W
Frequency - Transition 320MHz, 300MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package MPT6
Win Source Part Number 044954-MP6Z1
Ultra Librarian 3D Model Ultra Librarian MP6Z1 CAD Model

Description

The MP6Z1 from Rohm Semiconductor is an obsolete(EOL) NPN/PNP transistor.

  • Maximum Current Collector: 3A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 50V
  • Frequency Transition: 320MHz and 300MHz
  • Typical Gain (hFE) (Min): 180 @ 50mA, 3V
  • Maximum Power Dissipation: 2W
