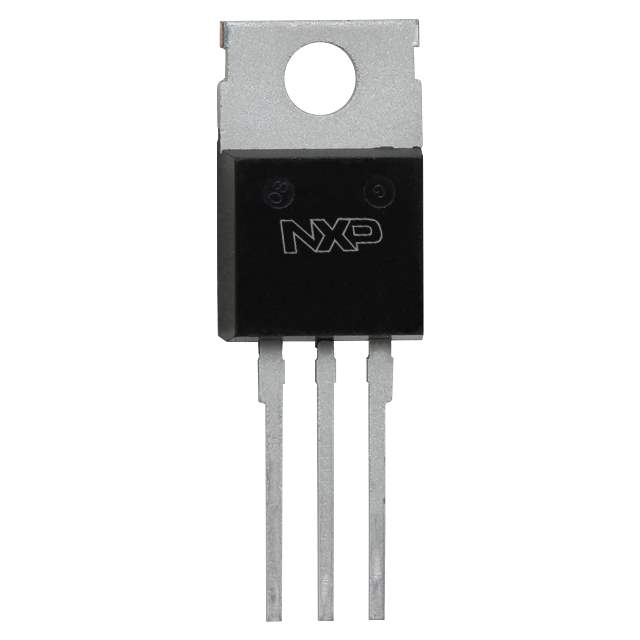

NXP BUT11AI High Voltage Fast-Switching NPN Power Transistor

The NXP BUT11AI is a high voltage, fast-switching NPN power transistor designed to cater to a wide range of applications requiring high switching speeds and substantial power handling capabilities. This device is a part of the well-known BUT11 series, which is recognized for its reliability and efficiency in power management solutions.

With a collector-emitter voltage (Vceo) of 450V and collector current (Ic) up to 5A, the BUT11AI is capable of handling high power applications with ease. Its high-speed switching capability, with a transition frequency (fT) of 3MHz, makes it ideal for use in high-frequency circuits. The power transistor also features a collector power dissipation (Pc) of 40W, ensuring that it can manage significant power levels without compromising performance.

The BUT11AI's robust design includes a fully isolated SOT-186 package, which provides excellent heat dissipation and allows for easy mounting on a heatsink. This isolation also aids in reducing thermal resistance and improving overall device longevity. The device's built-in features, such as a fast-switching speed and a high safe operating area, make it an excellent choice for high-performance switching applications.

Applications for the BUT11AI transistor are diverse, ranging from switching regulators and power amplifiers to high-voltage inverters and deflection circuits in television sets. Its ability to switch efficiently at high speeds makes it particularly suitable for modern electronic equipment that demands energy efficiency and compactness.

For designers and engineers, the BUT11AI offers a reliable solution that combines high voltage and power handling with fast switching speeds. Its standardized package ensures compatibility with a broad range of circuit designs. When it comes to power transistors that require both high-speed operation and the ability to manage substantial power loads, the NXP BUT11AI stands out as a robust and versatile component.

Overall, the NXP BUT11AI power transistor is a testament to NXP's commitment to providing high-quality, durable, and efficient components for advanced electronic applications.
