The BZA956AVL is a high-performance, low-capacitance double ESD (ElectroStatic Discharge) protection diode array designed by NXP Semiconductors. This advanced protection device is specifically engineered to safeguard high-speed data lines and other sensitive circuits from damage caused by ESD, electrical fast transients (EFT), and other voltage-induced transient phenomena.

Key Features

• Low Clamping Voltage: The BZA956AVL offers superior protection by clamping unwanted transients to a minimal voltage, ensuring the safety of sensitive components downstream.
• Low Capacitance: With an ultra-low capacitance design, this device is ideal for protecting high-speed signal lines without compromising signal integrity.
• High ESD Protection: It is capable of withstanding ESD discharges up to the IEC 61000-4-2 standard, making it a robust solution for ESD-prone environments.
• Dual Diode Array: The device features two rail-to-rail diodes, allowing for bi-directional protection on data lines.

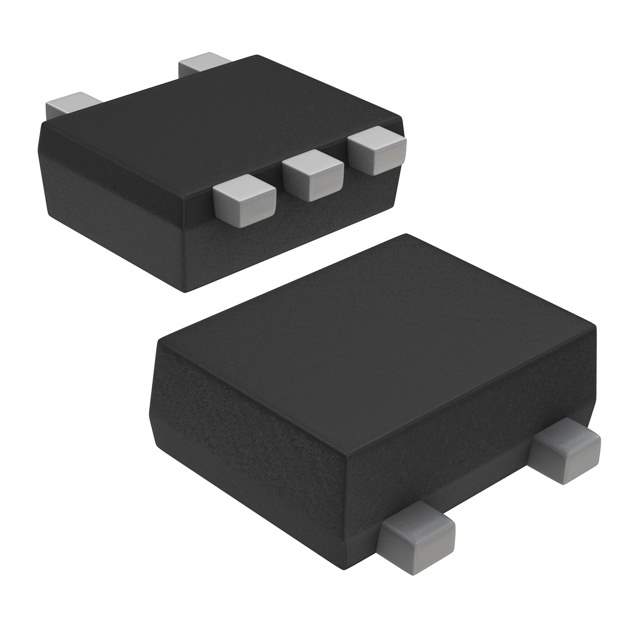

• SOT23 Package: The compact SOT23 package makes it suitable for space-constrained applications while providing excellent thermal and electrical performance.

Applications

The BZA956AVL is versatile and can be used in a variety of applications where data line protection is critical. Common applications include:

• USB interfaces
• HDMI and DisplayPort interfaces
• Mobile devices
• Notebook computers
• Set-top boxes
• Networking equipment

Advantages

Implementing the BZA956AVL in your circuit design offers numerous advantages:

• Enhances the reliability and longevity of electronic systems by providing robust protection against transient events.
• Preserves signal integrity for high-speed data lines, ensuring optimal performance of communication interfaces.
• Its small footprint allows for integration into designs where PCB space is at a premium.

With its combination of features and performance, the BZA956AVL from NXP is an excellent choice for designers looking to enhance the protection of their electronic systems without sacrificing performance or space.
