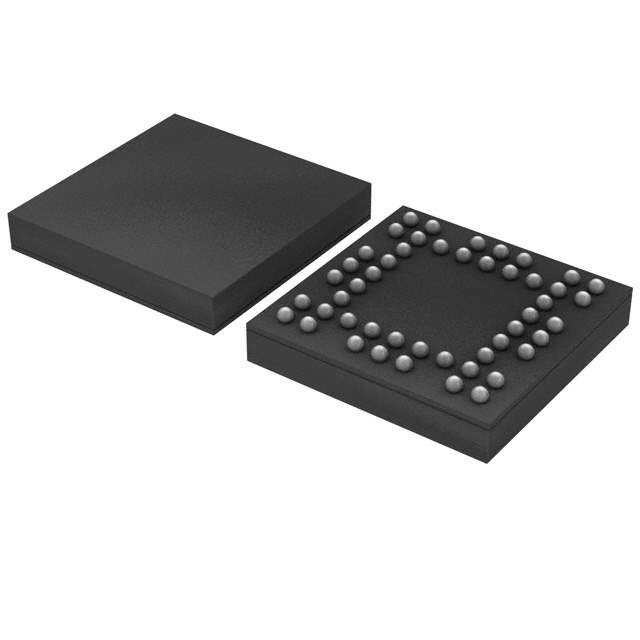

The CBTL06DP212EE is a high-performance, bidirectional, multi-protocol switch designed by NXP Semiconductors. This advanced switch is specifically engineered to facilitate the routing of high-speed differential signals, making it an essential component for applications that require the switching of DisplayPort (DP) and PCI Express (PCIe) signals.

Key Features

• High-Speed Performance: The CBTL06DP212EE is capable of handling data rates up to 8.1 Gbps for DisplayPort and 8 GT/s for PCI Express Gen3, ensuring compatibility with high-speed interfaces and protocols.
• Signal Routing Flexibility: With its bidirectional capabilities, this switch can route signals from a single source to multiple destinations or from multiple sources to a single destination, providing versatility in system design.
• Multi-Protocol Support: It supports multiple protocols, including DisplayPort 1.2 and PCI Express 3.0, making it suitable for a wide range of applications in computing, consumer electronics, and communications.
• Low Power Consumption: Designed with power efficiency in mind, the CBTL06DP212EE minimizes power consumption, which is crucial for battery-powered devices.
• Small Form Factor: The compact size of the switch is ideal for space-constrained applications, allowing for more efficient use of circuit board real estate.

Applications

The CBTL06DP212EE's versatility makes it suitable for a variety of applications, including:

• Laptops and Ultrabooks
• Desktop PCs and Workstations
• Docking Stations
• Graphics Cards
• Server and Networking Equipment

Technical Specifications

Some of the technical specifications of the CBTL06DP212EE include:

• 2 differential channels with bidirectional capability
• Support for AC-coupled and DC-coupled inputs
• Integrated high-impedance termination state for power savings
• Compliance with DisplayPort Standard 1.2 and PCI Express Base Specification Revision 3.0
• ESD protection on all pins

Conclusion

In conclusion, the NXP CBTL06DP212EE switch offers a powerful solution for designers looking to manage high-speed differential signals with ease and efficiency. Its support for multiple protocols, combined with its low power consumption and compact footprint, makes it an excellent choice for a multitude of cutting-edge electronic applications.
