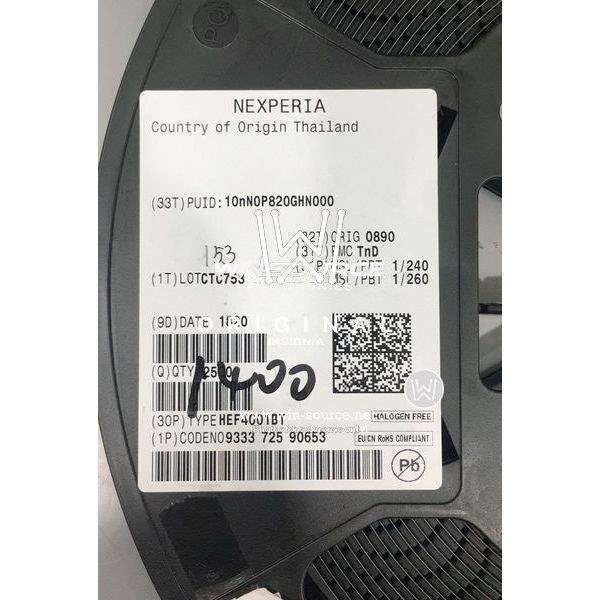

NXP HEF4001BT,653 Quad 2-Input NOR Gate IC

The NXP HEF4001BT,653 is a highly versatile integrated circuit that features four independent 2-input NOR gates in a single package. This IC is part of NXP's HEF4000 family, which is renowned for its robust performance and compatibility with a wide range of digital applications. The device employs silicon gate CMOS technology which ensures low power consumption and high noise immunity, making it a reliable choice for designers and engineers.

Each NOR gate on the HEF4001BT,653 IC has two inputs and one output, which can be used in various digital circuits where logic NOR operations are required. The NOR gate is a fundamental digital logic gate that outputs a true or high signal only when both inputs are false or low. This characteristic makes it suitable for implementing simple logic functions, generating control signals, or even building more complex logic structures such as flip-flops, counters, and multiplexers.

The NXP HEF4001BT,653 comes in a 14-pin SOIC package, which is compact and suitable for surface-mount technology (SMT), allowing for efficient use of PCB space. It operates over a wide supply voltage range from 3V to 15V, providing design flexibility to accommodate different logic level requirements and making it compatible with TTL, CMOS, and other logic families.

With its symmetrical output characteristics and high noise immunity, the HEF4001BT,653 ensures stable and predictable performance in a variety of environmental conditions. Additionally, the IC features low power dissipation, which is essential for battery-powered and energy-sensitive applications. Its static discipline allows for latch-up free operation which enhances the reliability of the overall system where it is deployed.

Whether it's for use in consumer electronics, automotive systems, industrial controls, or data processing equipment, the NXP HEF4001BT,653 Quad 2-Input NOR Gate IC is an excellent choice for designers looking for a reliable and flexible digital logic solution. Its ease of integration, combined with NXP's reputation for quality semiconductor products, makes it a go-to component for digital circuit designs.

For detailed specifications, application notes, and additional resources, designers are encouraged to consult the datasheet and support documentation available from NXP Semiconductors.
