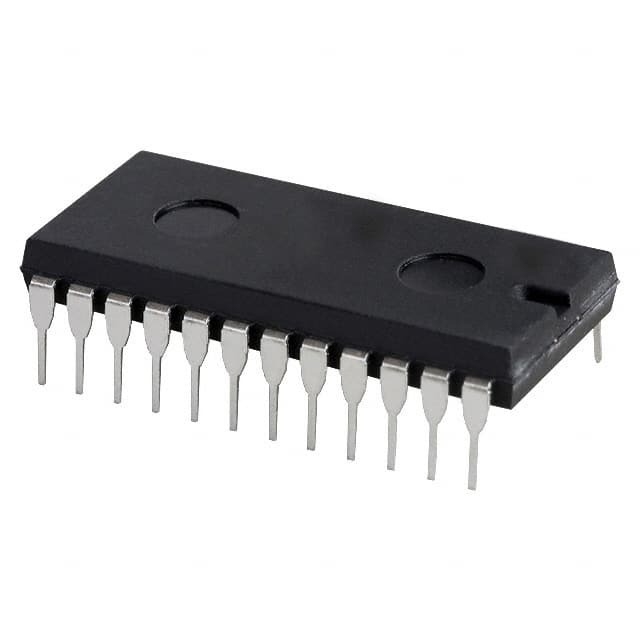

The HEF4059BP,652 is a versatile integrated circuit (IC) from NXP Semiconductors, designed to function as a programmable divide-by-n counter. This precision IC is part of the HEF4000 family, which is well-known for its robustness and reliability in a wide range of digital applications.

Key Features

• Programmable Division Factor: The HEF4059BP,652 allows users to set a custom division factor, making it suitable for various timing and frequency division applications.
• Wide Operating Voltage: It operates over a wide voltage range, accommodating different levels of power supplies and ensuring compatibility with other logic families.
• High Noise Immunity: The IC is designed with a high noise immunity, which is essential for stable operation in electrically noisy environments.
• Low Power Consumption: Its CMOS technology ensures low power consumption, making it ideal for battery-operated devices.
• Multiple Package Options: Available in different package types, the HEF4059BP,652 can be chosen in a form factor that best fits the application's space requirements.

Applications

The HEF4059BP,652 is suited for a variety of digital applications, including:

• Frequency division and timing circuits
• Time delay generation
• Counter and timer devices
• Clock generation circuits
• Sequential logic systems

Technical Specifications

With its fully static operation, the HEF4059BP,652 is a reliable choice for systems that require a stable and adjustable frequency divider. The device features a binary-coded decimal (BCD) counter, which can be programmed to divide by any number up to 9999 (or 2^12-1 in binary mode). It also includes an oscillator buffer and can be cascaded with additional counters for even larger division ratios.

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality products. The HEF4059BP,652 is manufactured under stringent quality control standards, ensuring that each IC meets the rigorous requirements of industrial and commercial applications.
