The IP3254CZ12-6-TTL132 is a state-of-the-art integrated circuit developed by NXP Semiconductors, a leader in the electronics industry known for its innovative and reliable products. This particular IC is designed to provide robust ESD protection for high-speed interfaces, making it an essential component for safeguarding sensitive electronic equipment.

Key Features:

• Interface Protection: The IP3254CZ12-6-TTL132 is specifically tailored to protect up to four high-speed signal lines from electrostatic discharge (ESD) that can cause irreversible damage to electronic components.
• Low Capacitance: With an ultra-low line capacitance, this IC ensures that signal integrity is maintained, which is crucial for high-speed data transmission applications like USB 2.0, HDMI, and Ethernet.
• High ESD Robustness: The device can withstand ESD discharges up to ±8 kV contact discharge as per the IEC 61000-4-2 standard, providing reliable protection against common ESD events.

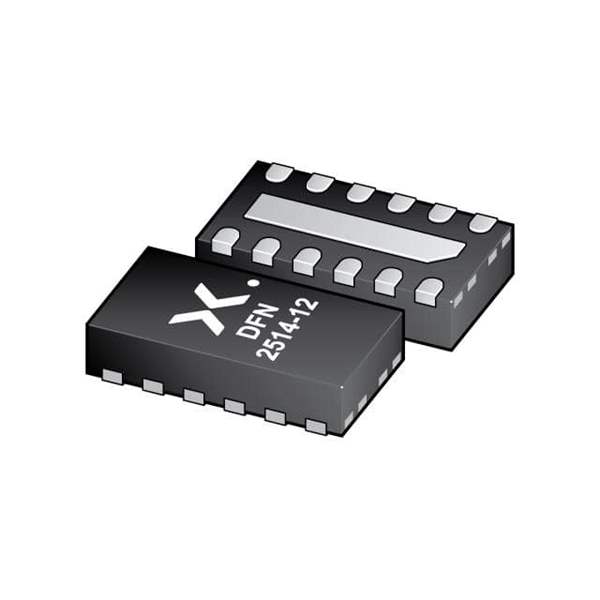

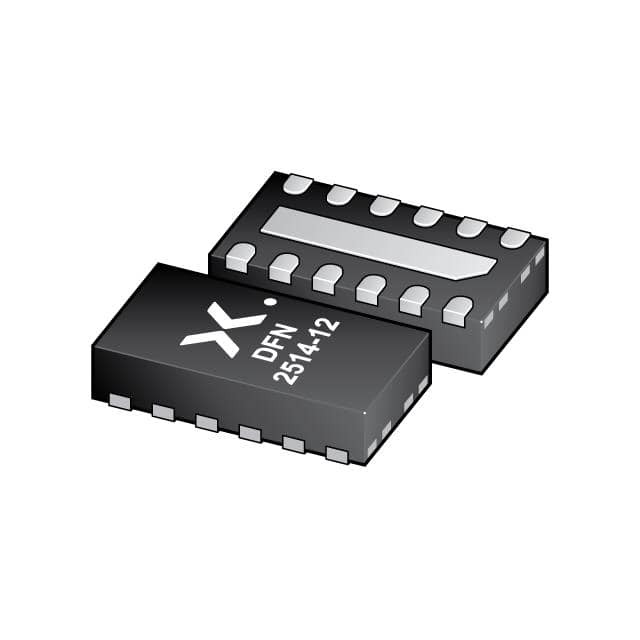

• Compact Package: The IP3254CZ12-6-TTL132 comes in a small 12-lead, leadless package (DFN2020-6), which makes it ideal for space-constrained applications.

Applications:

Due to its high level of protection and low capacitance, the IP3254CZ12-6-TTL132 is suitable for a wide range of applications, including:

• Mobile Devices
• Computers and Peripherals
• Consumer Electronics
• Networking Equipment
• Set-Top Boxes

Quality and Reliability:

NXP's commitment to quality ensures that the IP3254CZ12-6-TTL132 is manufactured to the highest standards. The device is rigorously tested to meet the stringent requirements of the electronics industry, providing designers with confidence in its performance and longevity.

Support and Resources:

For engineers and product designers, NXP provides comprehensive technical support and documentation for the IP3254CZ12-6-TTL132, including datasheets, application notes, and design guidelines to facilitate the integration of the IC into various applications.
