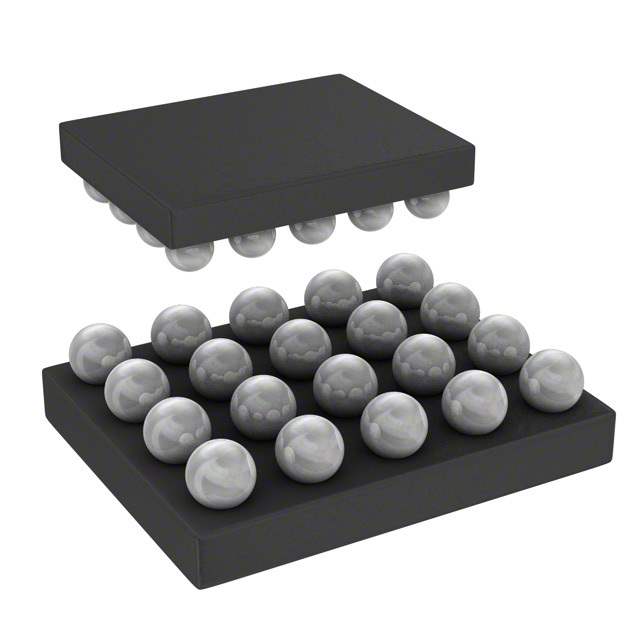

Product Overview: IP4052CX20/LF from NXP

The IP4052CX20/LF is a high-performance, low-capacitance ESD protection device designed and manufactured by NXP Semiconductors. This robust component is tailored specifically for safeguarding high-speed data lines from electrostatic discharge (ESD) threats that can arise during routine handling or from other external sources. It is an essential component for maintaining the integrity and longevity of sensitive electronic equipment.

Key Features

• Low Capacitance: With its ultra-low capacitance design, the IP4052CX20/LF is perfect for protecting high-speed data lines without compromising signal integrity. This makes it an ideal choice for applications such as USB 2.0, HDMI, and other serial buses.
• ESD Protection: This device offers robust ESD protection that meets or exceeds the highest industry standards, including IEC 61000-4-2. It can withstand ESD strikes, ensuring that connected devices remain safe and functional.
• Multi-Channel Integration: The IP4052CX20/LF incorporates multiple protection channels in a single package, providing a compact and efficient solution for protecting several lines simultaneously.
• Lead-Free Package: The component comes in a lead-free package, denoted by the LF suffix, which makes it compliant with current environmental regulations regarding hazardous substances.

Applications

The versatility of the IP4052CX20/LF allows it to be used across a wide range of applications where data line protection is critical. Some of the common applications include:

• Mobile Phones
• Personal Digital Assistants (PDAs)
• Digital Cameras
• MP3 Players
• Notebook and Desktop Computers

Reliability and Quality

NXP Semiconductors is known for its commitment to quality and reliability, and the IP4052CX20/LF is no exception. Each device is rigorously tested to ensure it meets the stringent requirements for ESD protection. Users can trust that incorporating the IP4052CX20/LF into their designs will provide reliable protection against ESD, thereby enhancing the durability and performance of their electronic products.

Conclusion

With its combination of low capacitance, high ESD protection, multi-channel integration, and compliance with environmental standards, the IP4052CX20/LF from NXP Semiconductors is a top-tier choice for designers looking to enhance the safety and performance of their high-speed data interfaces. Its application in a diverse range of electronic devices underscores its versatility and effectiveness as a protective solution.
