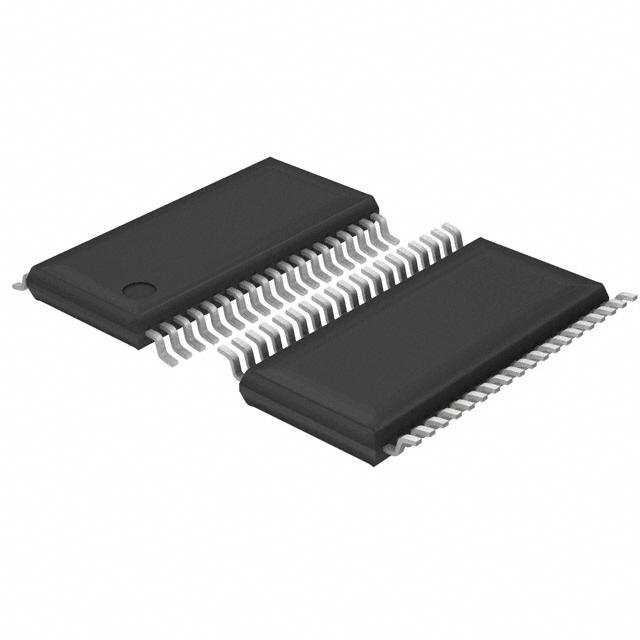

The IP4777CZ38,118 is a highly integrated HDMI interface conditioning and protection device from the renowned semiconductor manufacturer, NXP. Designed to support the latest HDMI standards, this component is essential for ensuring the integrity and quality of high-speed digital video and audio signals.

Key Features

• High-Speed Data Line Protection: The IP4777CZ38,118 provides robust ESD protection for HDMI 1.3, 1.4, and 2.0 interfaces, safeguarding against electrostatic discharge that can damage sensitive circuitry.
• Integrated Components: This device integrates termination resistors for the HDMI data lines, pull-down resistors on the Hot Plug Detect (HPD) line, and capacitors on the Consumer Electronics Control (CEC) line, thereby reducing component count and simplifying PCB layout.
• Low Capacitance: The low input capacitance ensures that the high-speed signals are not significantly distorted, maintaining signal integrity for optimal video and audio quality.
• Level Shifting: It includes level shifting functionality to match the signal levels of the source and sink, which is critical for maintaining signal fidelity across different devices.
• Back-Drive Protection: With back-drive protection on all lines, the IP4777CZ38,118 prevents damage to the device when it is powered down but the HDMI cable is still connected.

Applications

The IP4777CZ38,118 is suitable for a wide range of applications that require HDMI connectivity. This includes:

• High-definition televisions (HDTVs)
• Computer monitors
• Audio/Video receivers
• Blu-ray players
• Game consoles
• Professional video equipment

Quality and Reliability

NXP is known for its commitment to quality, and the IP4777CZ38,118 is no exception. It is designed to meet the stringent requirements of the consumer electronics industry, ensuring reliable performance in a variety of environments. With its comprehensive protection features and signal conditioning capabilities, the IP4777CZ38,118 is an excellent choice for designers looking to enhance the resilience and performance of their HDMI-enabled products.
