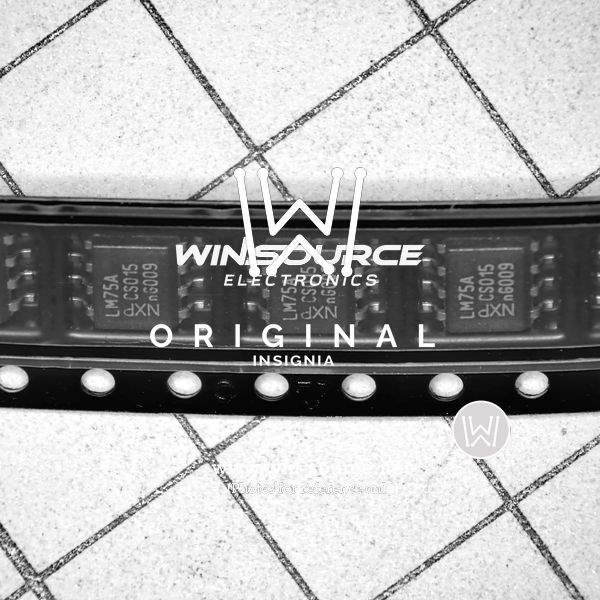

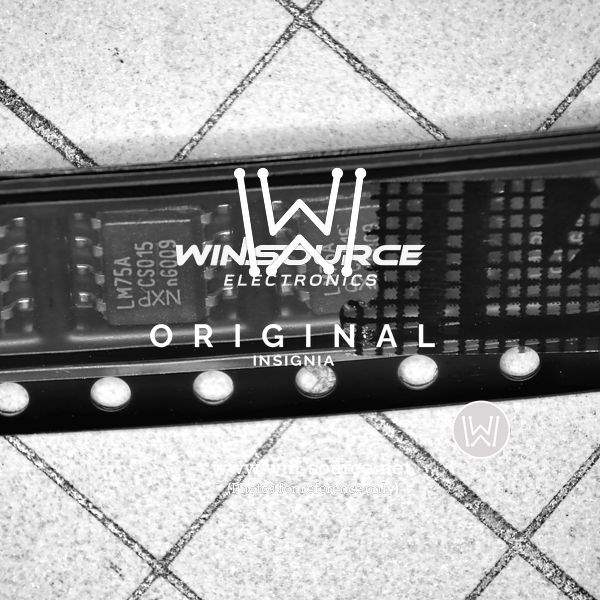

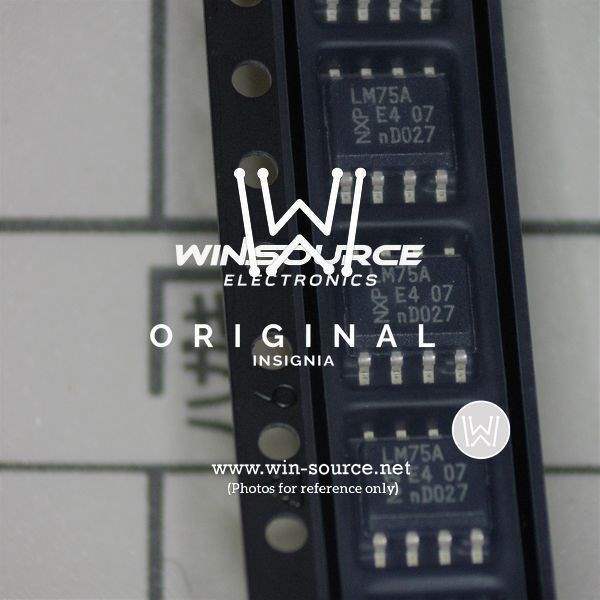

Introducing the LM75AD Temperature Sensor from NXP Semiconductors

The LM75AD is a precision integrated circuit temperature sensor that offers a digital output corresponding to the temperature of the device. Manufactured by NXP Semiconductors, a leader in the semiconductor industry, the LM75AD is designed for a wide range of applications, including system thermal management, personal computers, electronics, and industrial controls.

This high-accuracy temperature sensor operates over a -55°C to +125°C temperature range with a remarkable ±2°C accuracy over the -25°C to +100°C range and ±3°C over the -55°C to 125°C range. It uses I²C, a popular serial interface, which allows for easy integration into existing systems with minimal additional components.

Key Features of the LM75AD

• Digital Output: The LM75AD provides temperature readings in a digital format, eliminating the need for analog-to-digital converters and simplifying the design process.
• I²C Interface: Its I²C interface supports standard, fast, and high-speed modes, making it versatile for various communication requirements.
• Programmable Resolution: The sensor's resolution is programmable from 9 to 12 bits, allowing designers to optimize the trade-off between resolution and measurement speed.
• Low Power Consumption: Designed for energy efficiency, the LM75AD is suitable for battery-powered applications due to its low operating current.
• Shutdown Mode: It includes a shutdown mode that significantly reduces power consumption when the sensor is not in use.
• Alarm Function: The device features an overtemperature alarm that triggers an interrupt to the host system, providing an immediate response to critical temperature events.

With its small footprint, the LM75AD is available in a variety of packages, including SO8 and TSSOP8, making it easy to fit into space-constrained applications. Its robust design ensures reliable operation even in harsh environmental conditions.

Whether you're developing sophisticated thermal management systems or need reliable temperature monitoring for your electronics, the NXP LM75AD represents an excellent choice, offering precision, flexibility, and ease of use in a compact, power-efficient package.
