NXP LPC1769FBD100 Microcontroller

The NXP LPC1769FBD100 is a high-performance microcontroller that is part of the LPC1700 series, designed for embedded applications requiring a blend of power efficiency, performance, and advanced peripherals. Built around the ARM Cortex-M3 processor, this microcontroller is well-suited for industrial control, medical systems, e-vehicles, and other demanding applications.

Key Features:

• Core: ARM Cortex-M3 processor, running at frequencies of up to 120 MHz.
• Memory: 512 KB of on-chip flash memory and 64 KB of SRAM, which provides ample space for complex applications and algorithms.
• Digital Peripherals: Includes a range of digital peripherals such as GPIOs, timers, and multiple serial interfaces (UART, I2C, SPI, CAN).
• Analog Peripherals: Features a 12-bit ADC and a 10-bit DAC, allowing for precise analog signal processing.
• PWM Outputs: Supports multiple pulse-width modulation outputs for motor control and other applications requiring precise timing control.
• Connectivity: Comes with Ethernet, USB 2.0 full-speed device/host/OTG, and CAN 2.0B connectivity for versatile communication options.
• Power Efficiency: Offers an array of power-saving modes, including deep power-down mode with ultra-low power consumption.

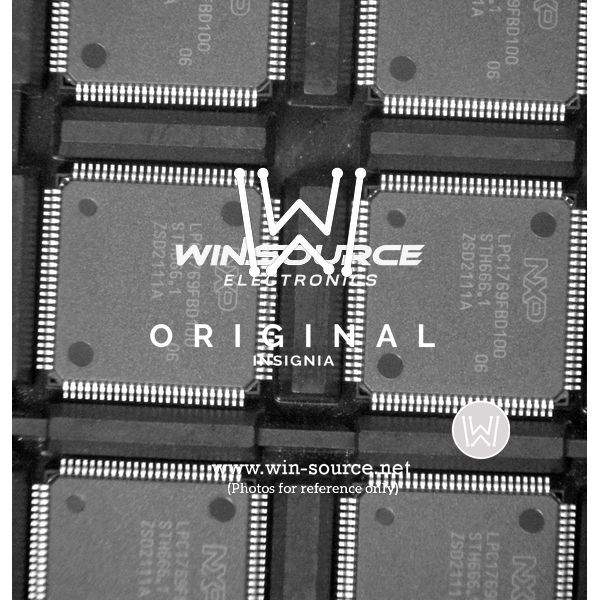

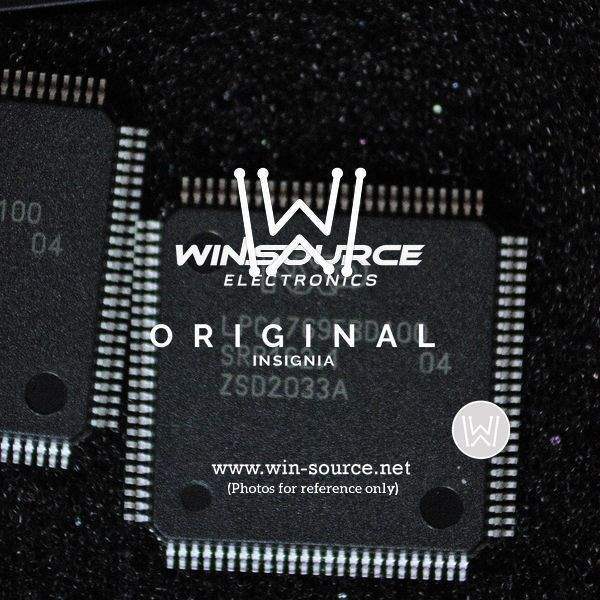

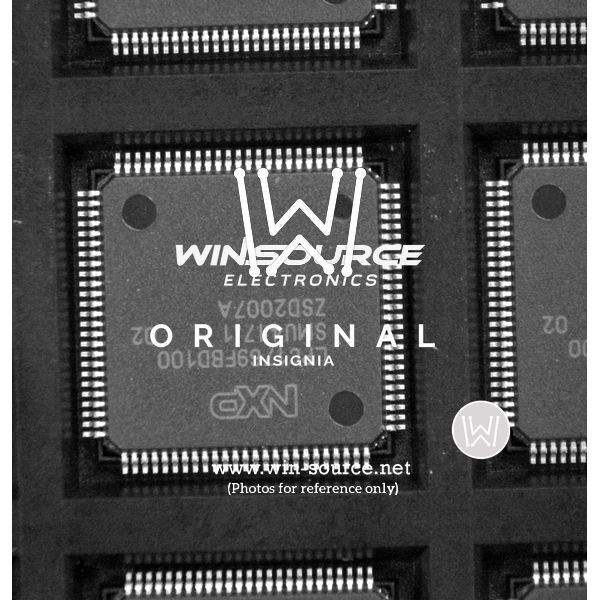

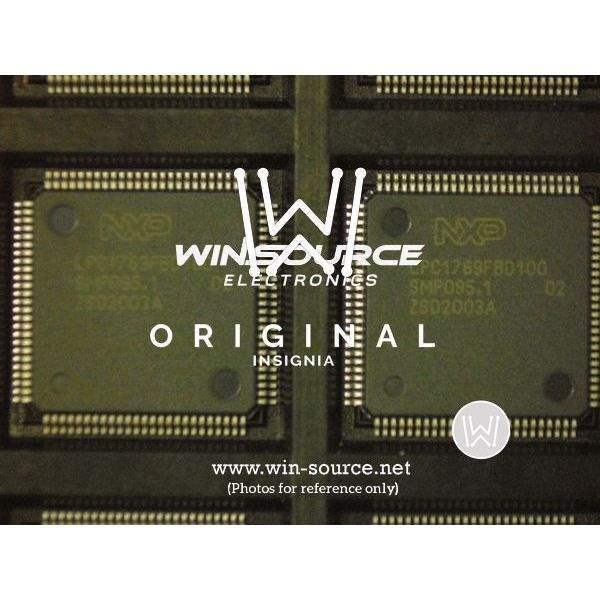

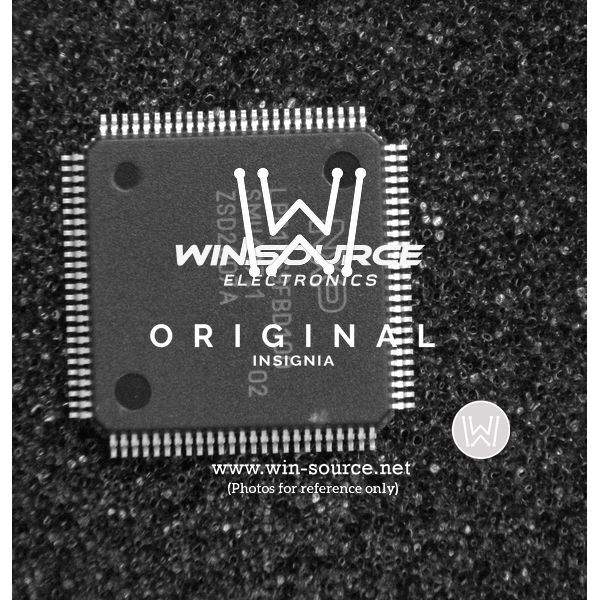

• Package: Available in a 100-pin LQFP package, which is ideal for space-constrained applications.

Advanced Integration:

The LPC1769FBD100 integrates several system components to reduce the overall system cost and PCB size. It includes a Memory Protection Unit (MPU) which enhances the reliability and safety of the system by providing protection for memory segments against faulty code execution. Additionally, the microcontroller offers an on-chip RTC (Real-Time Clock) for time-keeping applications and an on-chip watchdog timer to reset the system in case of software anomalies.

Development Support:

Developers can take advantage of extensive development tools and software support. NXP provides a comprehensive suite of development tools including IDEs, middleware libraries, and example code to facilitate rapid development and debugging. The LPC1769FBD100 is also supported by a robust ecosystem of third-party development boards and software, ensuring that developers can find the resources they need to bring their projects to fruition.

With its impressive mix of processing power, memory, and peripherals, the NXP LPC1769FBD100 is a versatile and reliable choice for complex and demanding applications.
