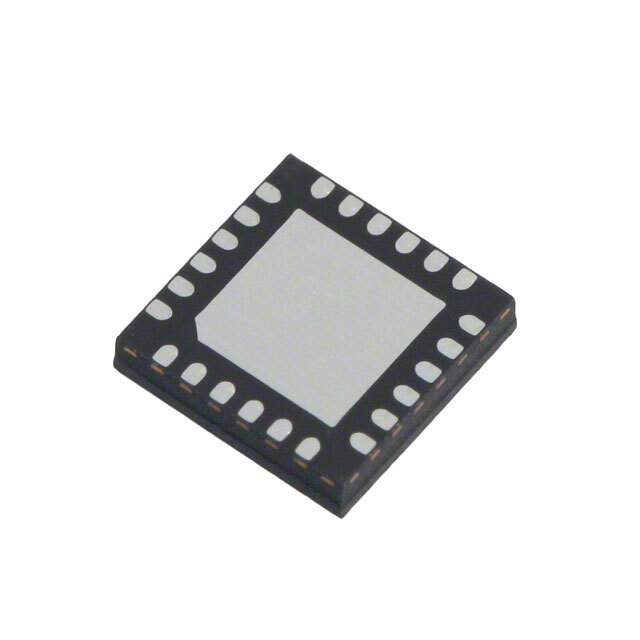

Introducing the MC10XS3435DHFK by NXP Semiconductors

The MC10XS3435DHFK is a state-of-the-art, five-output, high-side switch IC designed by NXP Semiconductors for automotive and industrial applications. This robust component is engineered to control various resistive, inductive, and capacitive loads such as bulbs, solenoids, and motors, making it a versatile solution for a wide range of control systems.

Key Features

• High Current Handling: Each of the five outputs can handle current up to 6A with a maximum rating of 10A for the entire device, ensuring reliable performance for heavy-duty operations.
• Integrated Control: The device includes SPI control for diagnostics and output control, providing precise management and feedback for system monitoring.
• Thermal Protection: With smart thermal shutdown and overcurrent protection, the MC10XS3435DHFK is designed to safeguard itself and the system it controls from potential damage due to overheating or overloading.
• Low Standby Current: It boasts a low standby current, which is crucial for reducing power consumption when the device is not actively driving loads.
• Wide Voltage Range: The operating voltage range from 6V to 20V, with extended transient operation up to 40V, makes it suitable for various automotive and industrial environments.

Robust Design for Harsh Environments

The MC10XS3435DHFK is designed with harsh environments in mind. It is equipped with a robust H-bridge configuration and is AEC-Q100 qualified, ensuring reliability under the stringent conditions typical of automotive applications. The device's package is also environmentally friendly, with a Pb-free, Halogen-free, and RoHS compliant design.

Applications

This high-side switch is ideal for a range of applications, including but not limited to:

• Automotive lighting control
• Engine control modules
• Body control modules
• Industrial control systems

In conclusion, the MC10XS3435DHFK from NXP Semiconductors is a powerful, reliable, and versatile high-side switch IC that provides an optimal solution for driving high-current loads in automotive and industrial control systems. Its robust design, combined with advanced protection features, ensures top-notch performance and longevity in demanding applications.
