Product Overview: NXP MC9S08DV60ACLH

The NXP MC9S08DV60ACLH is a high-performance microcontroller that belongs to the MC9S08 family, designed to cater to a wide range of embedded applications. This microcontroller features a HCS08 central processing unit (CPU) and is built on a high-density, low-power silicon process, providing an optimal balance between processing power and energy efficiency.

Key Features:

• CPU Speed: The device boasts a CPU speed of up to 40 MHz, delivering robust computational capabilities for complex tasks and enabling quick data processing.
• Flash Memory: Equipped with 60 KB of on-chip flash memory, the MC9S08DV60ACLH allows for ample space to store application code and data, ensuring reliable and secure non-volatile storage.
• RAM: With 4 KB of Random Access Memory (RAM), it provides sufficient temporary data storage for smooth and efficient operation of applications.
• I/O Ports: The microcontroller includes multiple general-purpose input/output (GPIO) ports, which can be programmed to interface with various peripheral devices, sensors, and actuators.
• ADC: An integrated 10-bit Analog-to-Digital Converter (ADC) with multiple channels offers precision analog input capability, making it suitable for sensor interfacing and data acquisition applications.
• Timers: It features multiple timers, including an 8-channel timer/pulse-width modulator (TPM) module, which is essential for tasks requiring precise timing and PWM control.
• Communication Interfaces: The MC9S08DV60ACLH supports various serial communication interfaces, such as I2C, SPI, and SCI, allowing for versatile connectivity options with other microcontrollers, computers, and peripheral devices.
• Low Power Modes: The device offers several low-power modes, significantly reducing power consumption during idle periods, which is crucial for battery-powered and energy-sensitive applications.

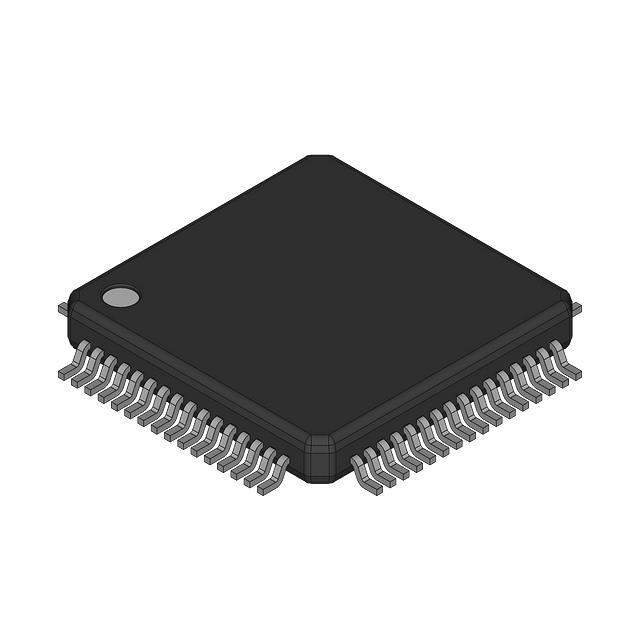

• Package: Available in a 64-LQFP (Low-Profile Quad Flat Package), the microcontroller is designed for space-constrained applications while providing adequate I/O and functionality.

Applications:

The NXP MC9S08DV60ACLH is a versatile microcontroller ideal for a variety of applications, including but not limited to industrial control systems, consumer electronics, automotive modules, home automation, and medical devices. Its combination of processing power, memory capacity, and rich peripheral set allows designers to create sophisticated and reliable systems.
