The NXP MC9S12D64MPV is a high-performance microcontroller unit (MCU) designed for automotive and industrial applications. It is part of the HCS12 family of 16-bit microcontrollers which are known for their robust design, exceptional performance, and flexibility. This microcontroller is an ideal choice for complex and demanding applications that require a rich set of peripherals and a significant amount of integrated memory.

Key Features


• CPU: The MC9S12D64MPV is built around the HCS12 core, which operates at a frequency of up to 25 MHz, providing a perfect balance between processing power and energy efficiency.

• Memory: It comes with 64KB of on-chip Flash memory and 4KB of RAM, ensuring ample space for application code and data storage without the need for external memory components.

• Digital and Analog Peripherals: This MCU boasts a comprehensive set of peripherals including multiple digital communication interfaces such as SCI (Serial Communication Interface), SPI (Serial Peripheral Interface), and I2C, along with 8-channel 10-bit Analog-to-Digital Converters (ADCs) for interfacing with various sensors and analog inputs.

• Timers: With an 8-channel timer module, the MC9S12D64MPV facilitates precise event management and PWM (Pulse Width Modulation) generation, crucial for motor control and other time-sensitive operations.

• Input/Output: It supports up to 59 General Purpose Input/Output (GPIO) pins, providing a versatile interface for a wide range of external devices and user interfaces.

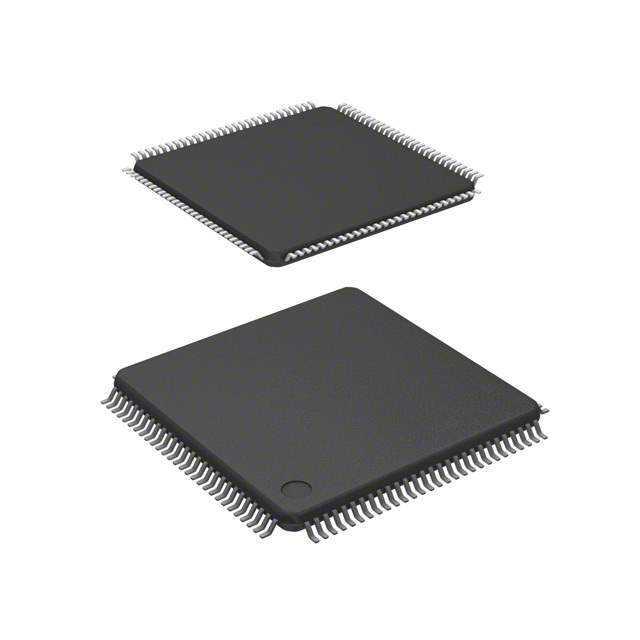

• Package: The MCU is available in a 112-pin LQFP (Low Profile Quad Flat Package), which is suitable for space-constrained applications while still offering excellent connectivity options.


Applications

The NXP MC9S12D64MPV is engineered to meet the stringent requirements of automotive applications, such as engine control units, body control modules, and advanced driver assistance systems. It is also well-suited for industrial applications that require reliable operation in harsh environments, including factory automation, robotics, and process control systems.

Design Support

NXP provides extensive support for the MC9S12D64MPV microcontroller with a full suite of development tools, including software libraries, development boards, and integrated development environments (IDEs). This ensures that engineers can rapidly develop, test, and deploy applications with this MCU, significantly reducing time to market.
