Product Overview: MCZ33905CS5EKR2

The MCZ33905CS5EKR2 is a high-performance System Basis Chip (SBC) from NXP Semiconductors, designed to provide a comprehensive solution for automotive applications that require a reliable interface between the microcontroller and the physical bus of Controller Area Network (CAN). This advanced SBC integrates multiple features to ensure robust communication and power management for automotive electronic control units (ECUs).

Key Features

• Integrated CAN Transceiver: The device includes a high-speed CAN transceiver that is compliant with the ISO 11898 standard, ensuring reliable data transmission and reception over the CAN bus.
• Enhanced Power Management: The SBC provides various power modes including a low-power mode to reduce the overall power consumption of the system when the vehicle is in idle or turned off.
• Voltage Regulator: An integrated voltage regulator with various output options is available to power the microcontroller and other peripherals, simplifying the system design.
• Watchdog Timer: A watchdog timer is included to monitor the system for failures and to initiate a system reset if necessary, enhancing the safety and reliability of the application.
• Fail-Safe Operation: The MCZ33905CS5EKR2 is designed with several fail-safe features such as thermal protection and overvoltage protection, ensuring the device operates safely under various conditions.
• Multiple Diagnostic Functions: Built-in diagnostic capabilities facilitate system troubleshooting and maintenance.

Applications

The MCZ33905CS5EKR2 is ideally suited for a wide range of automotive applications, including but not limited to:

• Body Control Modules
• Gateway Modules
• Powertrain Systems
• Chassis and Safety Systems

Package and Quality

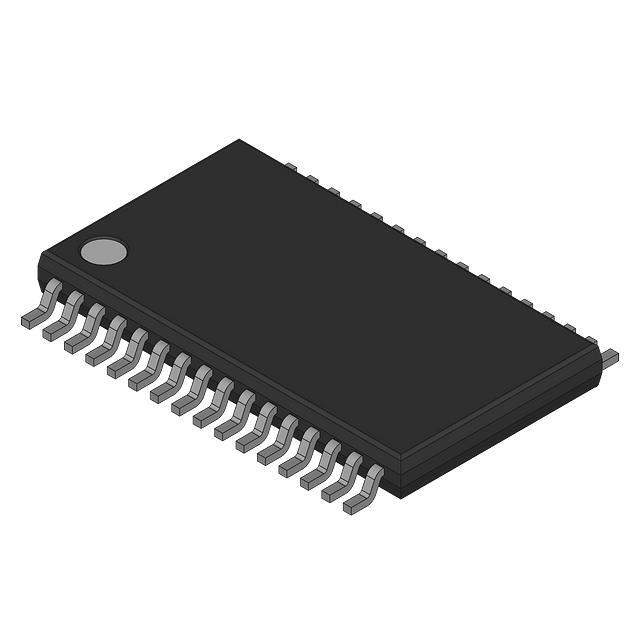

This SBC comes in a compact 32-pin LQFP package, making it suitable for space-constrained applications. It is manufactured to meet the stringent requirements of the automotive industry, ensuring high quality and reliability under harsh operating conditions.

With its robust design and integrated features, the MCZ33905CS5EKR2 from NXP is a versatile SBC that provides a solid foundation for developing sophisticated automotive electronics that demand high reliability and advanced communication capabilities.
