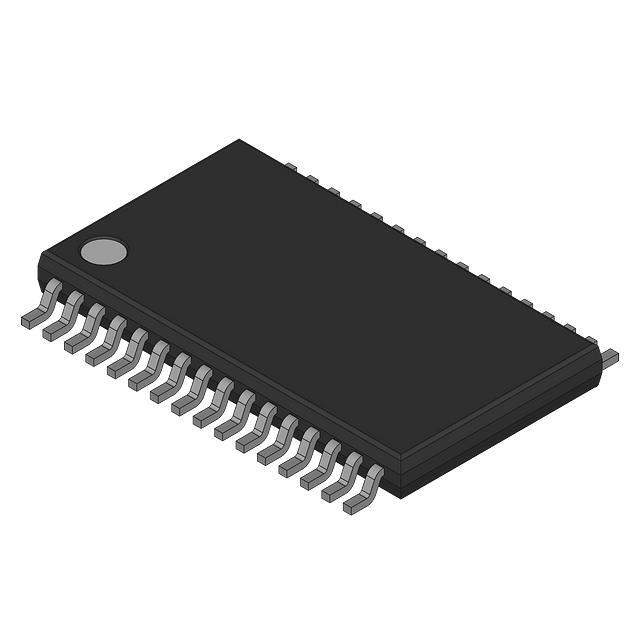

The MCZ33905S5EK is a next-generation System Basis Chip (SBC) from NXP Semiconductors, designed to provide a comprehensive solution for automotive applications requiring a high-speed CAN interface. This advanced product is tailored to meet the stringent requirements of in-vehicle networks and is suitable for a wide range of automotive applications such as body control modules, gateways, and instrument clusters.

Key Features

• High-Speed CAN Interface: The MCZ33905S5EK is equipped with a high-speed Controller Area Network (CAN) transceiver that supports the ISO 11898 standard, ensuring reliable communication at speeds of up to 1 Mbps.
• Enhanced Power Management: It includes an integrated voltage regulator with various modes of operation, providing power-saving options and contributing to the overall efficiency of the system.
• Robust Protection: The device offers excellent EMC performance and is designed to withstand the harsh conditions typically found in automotive environments. It includes features such as thermal protection, short-circuit detection, and overvoltage protection.
• Flexible Wake-Up Capability: The SBC supports multiple wake-up sources, including CAN and LIN flexibly, allowing for greater control over power management and system wake-up strategies.
• Diagnostic and Fail-Safe Features: Built-in diagnostics and fail-safe features enable the detection of system faults, contributing to the safety and reliability of the automotive system.

Applications

The MCZ33905S5EK's robust design and versatile feature set make it ideal for a variety of automotive applications. It is particularly well-suited for:

• Body Control Modules
• Automotive Gateways
• Instrument Clusters
• Steering and Brake Control Systems
• Engine Management Systems

Development Support

To facilitate development and evaluation, NXP offers a comprehensive evaluation kit for the MCZ33905S5EK. This kit includes a sample of the SBC, detailed documentation, and software tools to streamline the design process, enabling engineers to rapidly develop and test their automotive applications.

With its advanced features and robust design, the MCZ33905S5EK from NXP Semiconductors represents a powerful solution for automotive electronic systems, delivering performance, efficiency, and reliability.
