Product Overview: MMRF1015NR1

The MMRF1015NR1 is a high-performance RF power transistor from NXP Semiconductors, designed to deliver exceptional efficiency and power for a wide range of applications. This device is part of NXP's RF power LDMOS transistor family and is specifically engineered to meet the demanding requirements of high-power radio frequency amplification.

Key Features

• Frequency Range: The MMRF1015NR1 operates at a frequency range of 1.8 to 600 MHz, making it suitable for a variety of RF applications, including broadcast, industrial, scientific, and medical (ISM) applications.
• High Output Power: With a high output power capability, this transistor can deliver up to 125 Watts of continuous wave power, ensuring robust performance for high-power applications.
• High Gain: Boasting a high gain of 23 dB, the MMRF1015NR1 provides significant signal amplification, improving the overall efficiency of RF systems.
• Efficiency: The device offers excellent efficiency, with a typical performance of 70%, reducing energy consumption and heat generation in operation.

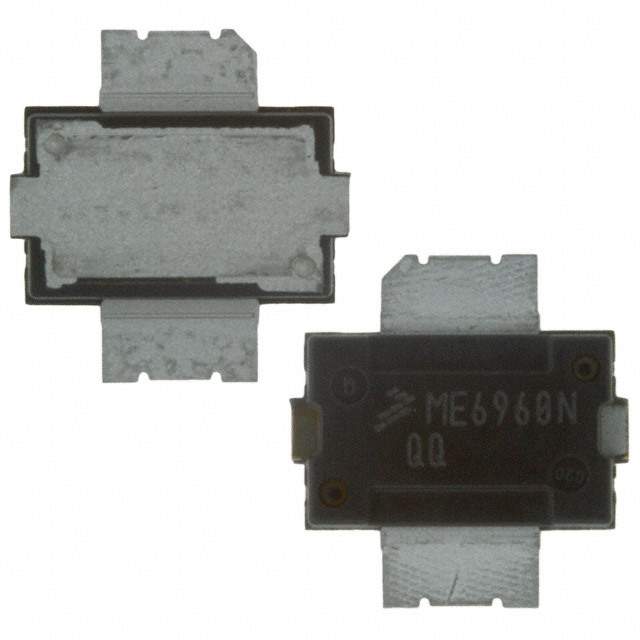

• Thermal Performance: The MMRF1015NR1 is encapsulated in a highly thermally efficient over-molded plastic package, which aids in heat dissipation and ensures reliable performance even under high-temperature conditions.

Applications

The MMRF1015NR1 is ideal for a range of applications that require high-power RF amplification, such as:

• Commercial and public radio transmitters
• RF energy applications including plasma generation, cooking, and heating
• Industrial, scientific, and medical equipment
• Avionics and radar systems
• Professional and military radio communications

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability, and the MMRF1015NR1 is no exception. It is manufactured under stringent quality controls and tested to ensure it meets NXP's high standards for performance and durability. With its robust construction and proven design, the MMRF1015NR1 is a reliable choice for designers and engineers looking to integrate high-power RF amplification into their systems.
