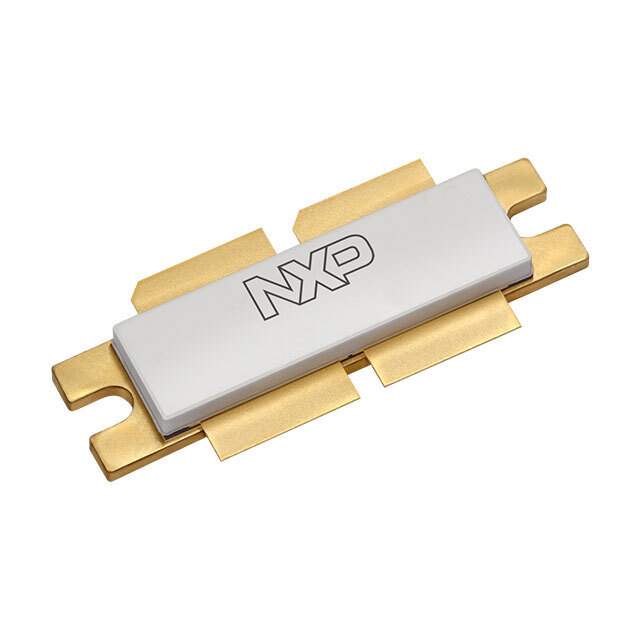

The NXP MMRF1016HR5 is a state-of-the-art RF power LDMOS transistor designed for high-performance applications. This device is part of NXP's RF power transistor product line and is specifically engineered to deliver exceptional power and efficiency. The MMRF1016HR5 is ideal for use in a wide range of applications, including broadcast transmitters, industrial, scientific, and medical (ISM) applications, as well as RF energy and large-signal, high-frequency amplifiers.

Key Features:

• High Efficiency: With its advanced LDMOS technology, the MMRF1016HR5 offers high efficiency, which is crucial for systems requiring low power consumption and heat dissipation.
• Wide Frequency Range: This transistor operates over a broad frequency range, making it versatile for various applications that require different frequency bands.
• High Power Output: The MMRF1016HR5 is capable of delivering a high output power, which is essential for applications that demand strong signal transmission or amplification.
• Excellent Thermal Stability: It is designed with a robust thermal management system, ensuring stable performance even under high-temperature conditions.
• Integrated ESD Protection: The device includes built-in electrostatic discharge (ESD) protection features to enhance its reliability and longevity in harsh environments.

Applications:

• Broadcast transmitters for radio and television
• ISM band applications, including industrial heating and welding
• Professional RF amplification systems
• RF energy for cooking and defrosting

Technical Specifications:

• Frequency Range: 1.8 to 600 MHz
• Output Power: 16 W CW
• Supply Voltage: 28 V
• Gain: 18.7 dB at 450 MHz
• Efficiency: 70% at 450 MHz
• Load Mismatch Tolerance: 10:1 VSWR

The MMRF1016HR5 from NXP is a testament to the company's commitment to providing cutting-edge RF solutions. With its robust design, high efficiency, and versatile operation, this LDMOS transistor is well-suited for professionals seeking reliable and powerful RF components.
