NXP MPXV5525DP Pressure Sensor

The NXP MPXV5525DP is a highly advanced, integrated silicon pressure sensor designed for a wide range of applications, but it is particularly well-suited for automotive systems. This state-of-the-art sensor is built on NXP's proprietary piezoresistive transducer technology, which ensures high accuracy and linearity as well as long-term stability and reliability.

With its differential pressure measurement capability, the MPXV5525DP is ideal for monitoring systems where pressure differences are crucial, such as in fuel systems, HVAC systems, and various industrial processes. The differential pressure range for this sensor is 0 to 25 kPa (0 to 3.625 psi), and it is calibrated to measure the difference between two pressure sources.

One of the key features of the MPXV5525DP is its temperature-compensated design. This feature ensures that the sensor maintains its accuracy across a broad temperature range, making it suitable for harsh environments where temperature fluctuations are common. The operating temperature range for this sensor is -40°C to +125°C (-40°F to +257°F), which covers most automotive and industrial applications.

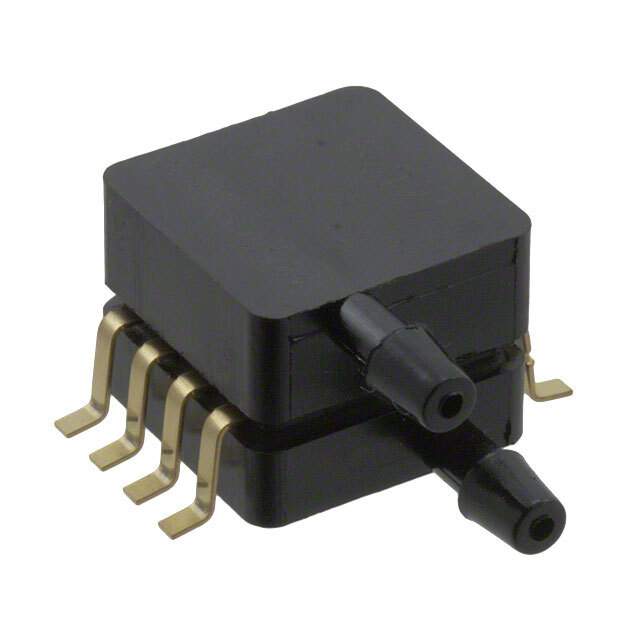

The sensor package is a small outline package (SOP) with dual port configuration, which allows for easy connection to pressure sources and provides robustness in design. The MPXV5525DP also includes an integrated signal conditioning circuit that outputs a calibrated and temperature-compensated analog voltage proportional to the applied pressure. This analog output can be easily interfaced with microcontrollers, analog-to-digital converters, or other electronic control units.

For enhanced safety and performance, the MPXV5525DP sensor incorporates built-in electrostatic discharge (ESD) protection. This protection helps to prevent damage during handling and operation in electrically noisy environments. Additionally, the sensor is designed to meet the stringent quality requirements of the automotive industry, including high resistance to vibration and mechanical shock.

In summary, the NXP MPXV5525DP is a versatile, reliable, and precise pressure sensor that offers excellent performance for a variety of pressure-sensing applications within the automotive and industrial sectors.
