The MRF1550FNT1 is a high-performance RF power LDMOS transistor designed by NXP Semiconductors. This device is specifically engineered for broadband commercial and industrial applications with frequencies up to 520 MHz. The MRF1550FNT1 is a testament to NXP's commitment to providing cutting-edge technology for RF power amplification.

Key Features

• Frequency Range: The transistor operates efficiently at frequencies up to 520 MHz, making it suitable for a wide range of applications, including broadcast and industrial uses.
• High Output Power: With an output power of 50 W CW, the MRF1550FNT1 is capable of delivering significant power for various RF applications.
• High Gain: A high gain of 17 dB ensures that the transistor can amplify RF signals effectively, which is critical for maintaining signal integrity in communication systems.
• Efficiency: The device offers an enhanced efficiency of 70%, which minimizes power loss and heat generation, leading to more reliable and sustainable operation.
• Ruggedness: The MRF1550FNT1 is built to withstand a load mismatch ratio of 10:1 through all phases, providing robustness and resilience in demanding environments.
• Integrated ESD Protection: Electrostatic discharge protection is included to safeguard the device against sudden electrical surges, ensuring a longer operational lifespan.

Applications

The versatility of the MRF1550FNT1 allows it to be used in a variety of applications. It is ideal for RF power amplifiers in broadcast transmitters, industrial, medical, and scientific equipment. Its robust design also makes it suitable for use in harsh environments where reliability is paramount.

Package and Quality Assurance

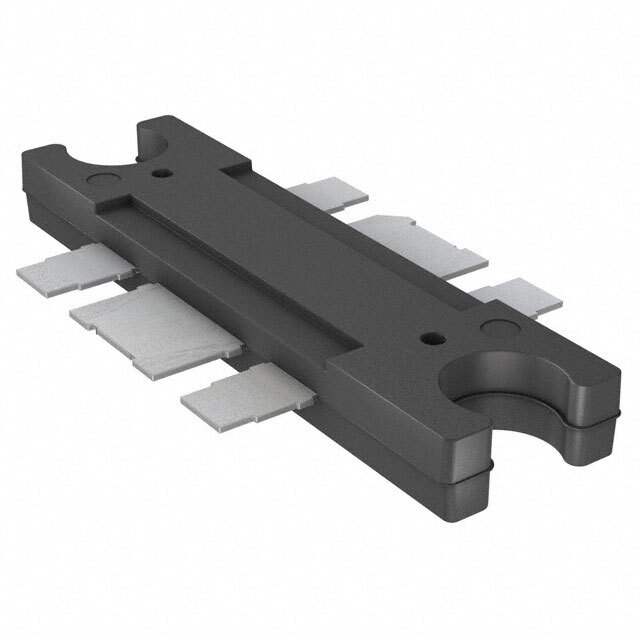

The MRF1550FNT1 comes in an over-molded plastic TO-270 WB-4 package, which provides excellent thermal performance and is designed for ease of installation. NXP ensures that each transistor meets the highest quality standards, with rigorous testing and quality control measures in place to guarantee performance and durability.
