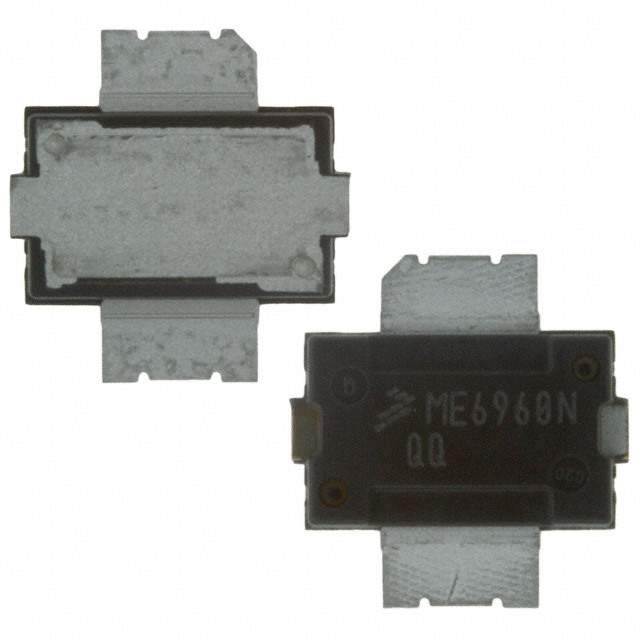

The MRF5S9070NR1 is a high-performance RF power transistor designed and manufactured by NXP Semiconductors. This device is a part of NXP's renowned RF MOSFETs product line, which is well-regarded for its reliability, efficiency, and cutting-edge technology. The MRF5S9070NR1 is specifically engineered to meet the demanding requirements of high-power RF applications, including commercial and industrial RF power amplifiers.

Key Features

• Frequency Range: This transistor operates at a frequency range of 860-960 MHz, making it ideal for applications in the UHF band, particularly for GSM and CDMA cellular systems.
• Output Power: It boasts a high output power of 70 Watts CW, ensuring robust performance for high-power applications.
• Gain: The MRF5S9070NR1 offers a high gain of 18 dB, which allows for efficient signal amplification.
• Efficiency: With an efficiency of 35%, it provides a balanced performance between power output and energy consumption.
• Integrated ESD Protection: The device includes built-in ESD protection, enhancing its durability and reliability in harsh environments.
• Thermally Enhanced Package: It comes in a thermally-enhanced package that ensures optimal heat dissipation, contributing to its longevity and stable operation under various temperature conditions.

Applications

The MRF5S9070NR1 is suitable for a wide range of applications, including but not limited to:

• Base station transceivers for cellular communication systems
• RF power amplifiers for GSM, CDMA, and LTE networks
• Industrial, scientific, and medical (ISM) applications
• Professional mobile radio systems
• General-purpose RF power amplifier applications

Quality and Reliability

NXP Semiconductors is committed to delivering products that meet the highest standards of quality and reliability. The MRF5S9070NR1 is no exception, as it is rigorously tested and certified to ensure optimal performance and longevity. Customers can trust this RF power transistor to deliver consistent, high-quality results in their RF power applications.
