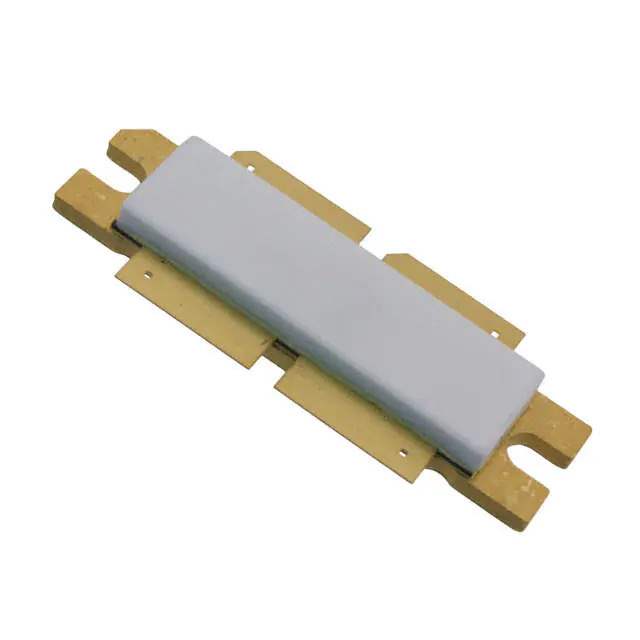

The MRF6VP121KHR6 is a high-performance RF power LDMOS transistor from NXP Semiconductors, designed to deliver exceptional efficiency and power for a wide range of applications. This device is part of NXP's highly acclaimed RF power transistor product line and is specifically engineered to meet the rigorous demands of broadcast, industrial, scientific, and medical (ISM) applications, as well as radio and VHF TV broadcast, aerospace, and mobile radio systems.

Key Features

• Frequency Range: The MRF6VP121KHR6 operates at a frequency range of 10 MHz to 1 GHz, making it versatile for various high-frequency applications.
• High Output Power: With a high output power of up to 1000 Watts CW, this transistor is capable of delivering significant power for efficient signal amplification.
• High Gain: It features high gain performance, typically 23 dB at 230 MHz, ensuring strong signal amplification.
• Efficiency: The device boasts an excellent efficiency rating, typically 70% or higher, which contributes to reduced energy consumption and heat generation.
• Ruggedness: The MRF6VP121KHR6 is designed to withstand a VSWR of 10:1 at 50 V, providing robustness and reliability under mismatched load conditions.
• Integrated ESD Protection: It includes integrated ESD protection, enhancing the durability of the device against electrostatic discharges.

Applications

• Broadcast transmitters for radio and VHF TV.
• Industrial, scientific, and medical (ISM) equipment.
• Aerospace applications including satellite communications.
• Professional mobile radio amplifiers.

Technical Specifications

The MRF6VP121KHR6 is encapsulated in a ceramic package that offers excellent thermal stability and is designed for high ruggedness. It requires a 50 V supply voltage and is capable of withstanding extreme operating conditions. The transistor is internally matched for ease of use and to simplify the design of the external circuitry.

Conclusion

The MRF6VP121KHR6 from NXP Semiconductors is a testament to NXP's commitment to providing advanced solutions for high-power RF applications. Its combination of high performance, efficiency, and ruggedness makes it an ideal choice for designers looking to improve the power and reliability of their RF systems.
