The NXP MRF8S7235NR3 is a high-performance RF power LDMOS transistor designed to deliver superior efficiency and gain for a wide range of RF power applications. This device is part of NXP's advanced LDMOS technology that caters to the increasing demands of the aerospace, defense, and commercial communication systems.

Key Features

• Frequency Range: The MRF8S7235NR3 operates within the 720-730 MHz frequency range, making it ideal for various broadcast and industrial applications.
• Output Power: It provides a high output power of 35 Watts CW, ensuring robust signal transmission and reception for critical communication systems.
• High Gain: With a high gain of 18 dB, this transistor amplifies RF signals effectively, thereby reducing the need for additional amplification stages and simplifying circuit design.
• Efficiency: The device boasts an excellent efficiency of up to 50%, which translates to lower operational costs and reduced thermal management requirements.
• Integrated ESD Protection: The MRF8S7235NR3 comes with built-in ESD protection, enhancing its robustness and reliability in harsh environments.

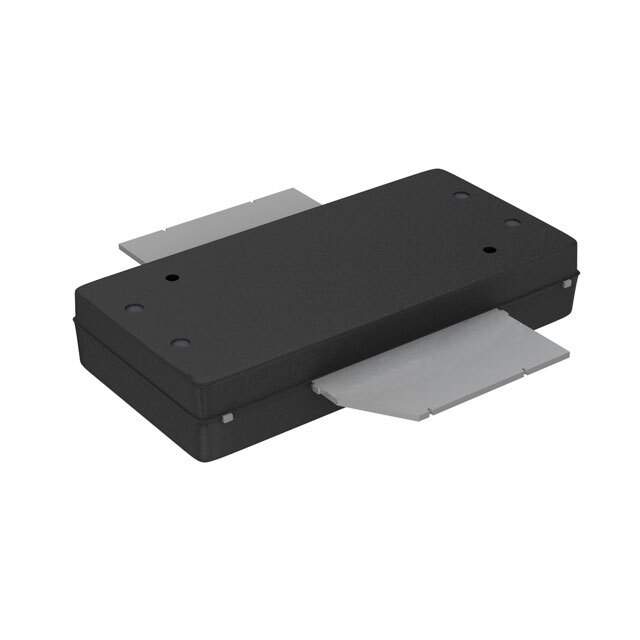

• Thermally Enhanced Package: Encased in a NI-780-4 package, the transistor is designed for optimal thermal performance, ensuring stability and longevity of the device under high-power operations.

Applications

The versatility of the MRF8S7235NR3 allows it to be used across various applications, including but not limited to:

• Commercial and public radio broadcasting
• Industrial, scientific, and medical (ISM) applications
• Aerospace and defense communication systems
• Land mobile radio systems
• RF energy applications

Quality and Reliability

NXP is known for its commitment to quality and reliability, and the MRF8S7235NR3 is no exception. It is manufactured under stringent quality control processes and is designed to meet the rigorous standards required by high-stakes industries. Whether for broadcasting, communication, or scientific applications, the MRF8S7235NR3 provides a reliable and efficient solution for RF power amplification needs.
