The MRF8S9260HR3 is a high-performance RF power transistor from NXP Semiconductors designed for a wide range of applications, including cellular base station amplifiers, broadcast transmitters, and industrial uses. This device is part of NXP's renowned MRFS series, known for its high efficiency, reliability, and thermal performance.

Key Features

• Frequency Range: The transistor operates within the 920-960 MHz range, making it ideal for GSM and LTE applications within that spectrum.
• Output Power: It delivers a high output power of 70 Watts CW, ensuring strong signal transmission for robust communication links.
• High Gain: With a power gain of 18 dB, this transistor amplifies RF signals effectively, maintaining signal integrity across various transmission distances.
• High Efficiency: The MRF8S9260HR3 boasts an excellent efficiency of 48%, which minimizes power loss and heat generation, leading to longer component life and reduced cooling requirements.
• Ruggedness: It can withstand a mismatch ratio (VSWR) of 10:1 through all phases, demonstrating its durability and reliability under challenging conditions.
• Integrated ESD Protection: The device includes built-in electrostatic discharge protection, safeguarding it against sudden voltage spikes and ensuring consistent performance.

Applications

The versatile nature of the MRF8S9260HR3 makes it suitable for a variety of RF power applications. It is commonly used in:

• Cellular base station amplifiers for GSM, CDMA, and LTE networks
• RF broadcast transmitters for television and radio
• Industrial and commercial RF power systems
• Public safety communications and jamming systems

Package and Quality

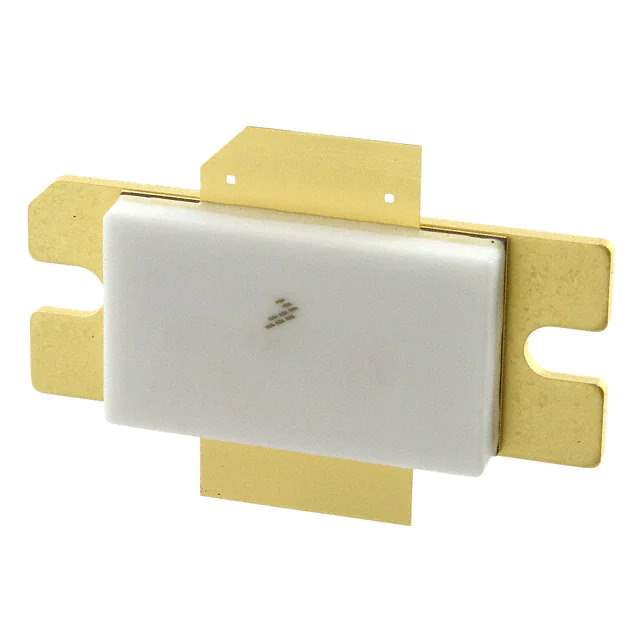

The MRF8S9260HR3 is housed in a ceramic, flanged package, which is not only robust but also offers excellent thermal properties. NXP's commitment to quality ensures that each transistor meets stringent performance criteria and is suitable for use in mission-critical systems where reliability is paramount.
