Introducing the MRFE6VP5300NR1 from NXP Semiconductors

The MRFE6VP5300NR1 is a state-of-the-art RF power LDMOS transistor designed and manufactured by the renowned NXP Semiconductors. This high-performance component is specifically engineered for a broad range of applications, including broadcast transmission, industrial, scientific, medical (ISM), and radio and VHF TV broadcast, to name a few. Its versatility makes it an ideal choice for professionals seeking a reliable and robust solution for high-power RF amplification.

With an impressive output power of 300 W, this device is capable of operating at frequencies up to 230 MHz. The MRFE6VP5300NR1 is designed to deliver not only high power but also high gain and high efficiency, which are critical parameters for energy-conscious applications. The transistor boasts a high gain of 26 dB, ensuring that the signal is amplified significantly without the need for additional stages, thereby simplifying circuit design.

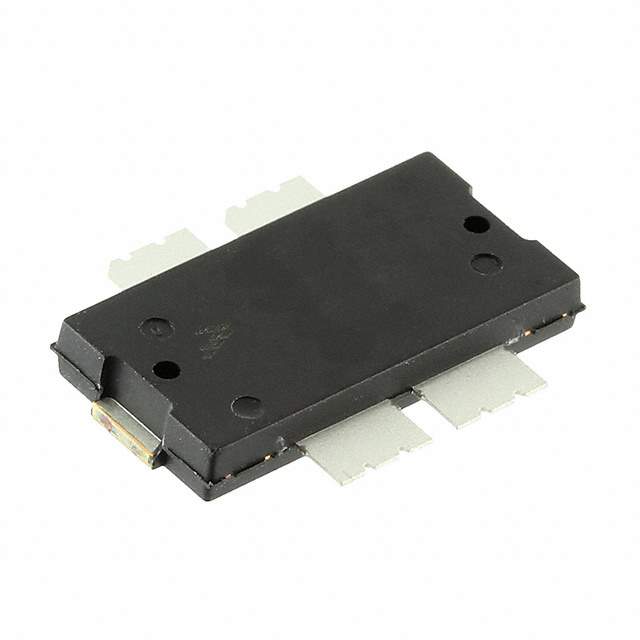

The MRFE6VP5300NR1 is housed in a ceramic package that offers outstanding thermal stability and durability. The ceramic material ensures that the device can withstand harsh operating conditions and maintain its performance over a wide temperature range. This ruggedness makes the MRFE6VP5300NR1 a reliable choice for outdoor and demanding environments.

One of the key features of this LDMOS transistor is its ease of integration into existing systems. It is designed with a broadband capability, meaning it can operate over a wide range of frequencies without the need for complex tuning. This feature simplifies the design process and allows for greater flexibility in application development.

Additionally, the MRFE6VP5300NR1 is characterized by its excellent ruggedness, capable of withstanding a VSWR (Voltage Standing Wave Ratio) of 65:1 at 50 V, which is a testament to its ability to handle mismatched loads without suffering damage. This characteristic is particularly important in environments where antenna performance can be unpredictable or in applications where load conditions can rapidly change.

In conclusion, the MRFE6VP5300NR1 from NXP Semiconductors is a top-tier RF power LDMOS transistor that offers high power, high gain, and high efficiency, all packaged in a durable and thermally resilient ceramic package. It is a superb choice for designers and engineers looking for a reliable and flexible component for their high-power RF applications.
