Product Overview: MRFE6VP5600HR6

The MRFE6VP5600HR6 is a high-power, high-performance RF transistor manufactured by NXP Semiconductors. Designed to operate at frequencies up to 600 MHz, this device is part of NXP's renowned family of field-effect transistors (FETs) optimized for a wide range of RF power applications, including broadcast transmission, industrial, scientific, and medical (ISM) applications, as well as for radio and VHF TV broadcast, sub-GHz aerospace, and mobile radio applications.

Key Features:

• High Output Power: Capable of delivering up to 600 Watts of continuous wave power, the MRFE6VP5600HR6 is designed to boost signal strength effectively.
• Wide Frequency Range: With an operational frequency range up to 600 MHz, this transistor is versatile and suitable for a variety of high-frequency applications.
• High Efficiency: The device offers high efficiency, which is critical for reducing thermal loads and improving system reliability.
• Ruggedness: The MRFE6VP5600HR6 is engineered to withstand severe load mismatch conditions with a high VSWR rating, ensuring durability and long-term performance.
• Integrated ESD Protection: Built-in electrostatic discharge protection helps to safeguard the transistor against unexpected voltage spikes.

Applications:

• Broadcast transmitters for radio and television
• ISM band applications
• Industrial heating and welding equipment
• Aerospace and defense communication systems
• Professional mobile radio systems

Technical Specifications:

The MRFE6VP5600HR6 is a laterally diffused metal oxide semiconductor (LDMOS) transistor that comes in a high-ruggedness package designed for high-voltage operation. It features a push-pull configuration and an integrated ESD protection system. The device is characterized by a high gain of typically 23 dB, with a high drain-source voltage (Vds) of 50V.

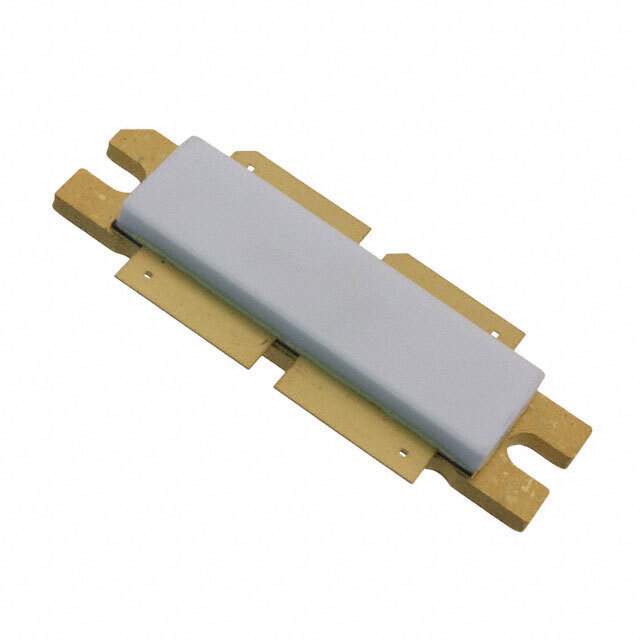

The transistor is encapsulated in a ceramic package, which ensures excellent thermal management and resistance to environmental conditions. The MRFE6VP5600HR6 is also RoHS compliant, adhering to the latest environmental standards and regulations for electronic components.

For designers and engineers looking to integrate a reliable and high-power RF transistor into their systems, the MRFE6VP5600HR6 from NXP offers a compelling blend of performance, efficiency, and ruggedness.
