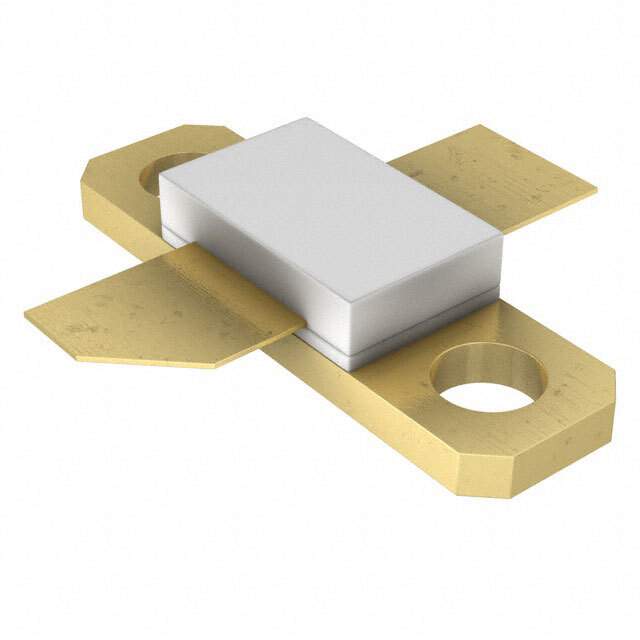

Product Overview: MRFE6VS25LR5 - RF Power Transistor

The MRFE6VS25LR5 is a high-performance Radio Frequency (RF) power transistor designed by NXP Semiconductors. It is part of NXP's MRFE6VS series, which are known for their exceptional quality and reliability in RF power applications. This particular model is designed to deliver excellent performance in a wide range of frequencies, making it a versatile choice for various communication and broadcasting systems.

Key Features

• Frequency Range: The MRFE6VS25LR5 operates efficiently in the 1.8-600 MHz range, providing a broad spectrum of usage in different RF applications.
• Output Power: It offers a high output power of 25 W CW, ensuring strong signal transmission capabilities.
• High Gain: With a gain of 18 dB, this transistor amplifies RF signals effectively, maintaining signal integrity and strength.
• Efficiency: The device is designed with enhanced efficiency, boasting a typical efficiency of 70%, which helps in reducing power losses and improving overall system performance.
• Integrated ESD Protection: The MRFE6VS25LR5 includes built-in Electrostatic Discharge (ESD) protection, safeguarding the device from unexpected voltage spikes and enhancing its durability.

Applications

This RF power transistor is suitable for a variety of applications, including but not limited to:

• Industrial, scientific, and medical (ISM) applications
• Broadcast transmitters for radio and television
• Land mobile radios
• Aerospace and defense communication systems
• Amplifiers for cellular and wireless infrastructure

Quality and Reliability

The MRFE6VS25LR5 is manufactured by NXP Semiconductors, a leader in the semiconductor industry, ensuring high standards of quality and reliability. The device is housed in a RoHS-compliant, over-molded plastic package that provides excellent thermal performance and durability. Its robust construction and adherence to stringent quality controls make it a reliable choice for demanding RF power applications.
