Introducing the MRFE6VS25NR1 RF Power LDMOS Transistor

The MRFE6VS25NR1 is a high-performance Radio Frequency (RF) power LDMOS transistor designed by NXP Semiconductors, a leader in the field of advanced semiconductor solutions. This device is specifically engineered to cater to the demanding requirements of commercial RF energy applications, including industrial, scientific, and medical (ISM) applications, as well as for RF plasma lighting, laser excitation, and amateur radio operations.

Robust Design and High Efficiency

At the core of the MRFE6VS25NR1's design is its exceptional efficiency and ruggedness. The transistor is capable of delivering up to 25 Watts of continuous wave power over a broad RF spectrum from 1.8 to 600 MHz. This wide frequency range makes it an incredibly versatile component for various applications. Built with NXP's advanced LDMOS technology, the MRFE6VS25NR1 maintains high gain, efficiency, and excellent thermal stability, ensuring reliable performance even under strenuous conditions.

Key Features

• Frequency Range: 1.8 to 600 MHz, providing a broad spectrum for diverse applications.
• Output Power: Capable of delivering 25W CW, ensuring significant power for high-demand applications.
• Gain: High gain of 18 dB, which allows for better signal amplification.
• Efficiency: Excellent efficiency of 70%, minimizing energy loss and heat generation.
• Integrated ESD Protection: With built-in electrostatic discharge protection, the transistor is safeguarded against sudden voltage spikes, enhancing its durability.

Applications and Versatility

The MRFE6VS25NR1's robustness and efficiency make it ideal for a wide range of high-power applications. It is commonly used in RF energy applications such as industrial heating, drying processes, and medical procedures that require precision and reliability. Additionally, its capabilities are well-suited for RF plasma generation and amateur radio equipment, where consistent and reliable RF power is critical.

Easy Integration

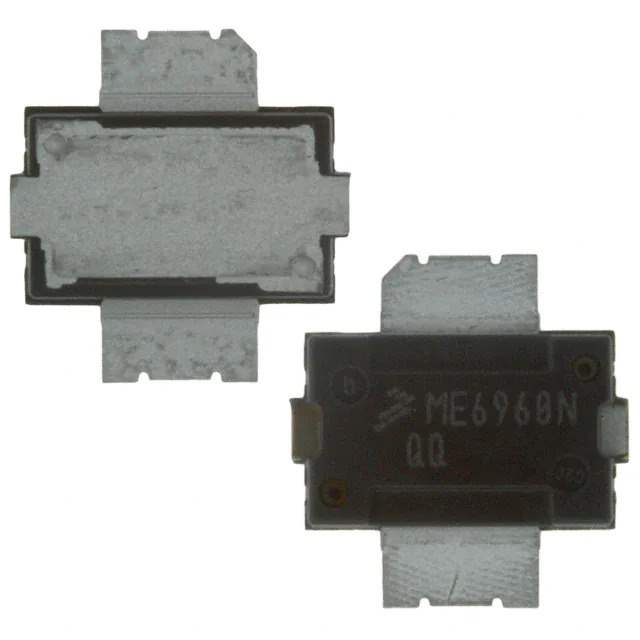

Designed with ease of integration in mind, the MRFE6VS25NR1 comes in a compact over-molded plastic package. This design simplifies the assembly process and provides excellent protection for the internal semiconductor, ensuring a long operational life. The transistor is also characterized by a high level of impedance stability over a wide range of frequencies, facilitating easier matching for designers and engineers.

With its combination of power, efficiency, and versatility, the MRFE6VS25NR1 from NXP Semiconductors stands out as a top choice for professionals seeking a reliable RF power solution.
