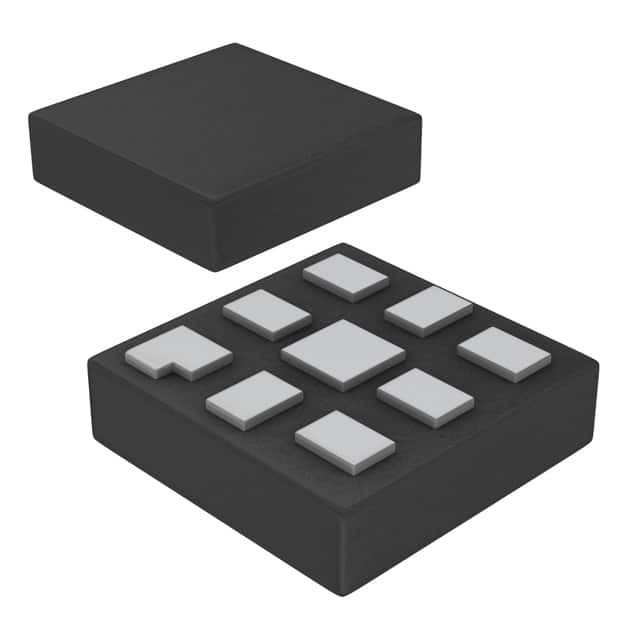

The PCA9509PGM,125 is a high-performance, level translating I2C-bus repeater designed by NXP Semiconductors. This device allows for bidirectional voltage-level translation between low-voltage (down to 0.9V) and higher-voltage (2.7V to 5.5V) I2C-bus or SMBus applications. It is a crucial component for systems that require communication between devices operating at different voltage levels.

The PCA9509PGM,125 is equipped with two separate supply voltages, V<sub>DD1 for the lower voltage side and V<sub>DD2 for the higher voltage side, which allows for level translation between 1V and 5V without the need for a direction pin. The device's unique design ensures that the SDA and SCL lines are bidirectionally translated, making it an ideal solution for multi-voltage systems.

This repeater provides a robust interface with the capability to buffer and provide capacitive isolation between the upstream and downstream buses, allowing for extension of the I2C-bus by buffering both the data (SDA) and the clock (SCL) lines, which results in higher drive capability and longer bus length. Moreover, the PCA9509PGM,125 has built-in hot-swap capability, which means that a card can be inserted into or removed from a live backplane without corruption of the data on the I2C-bus.

The device is also designed with an active-high repeater enable (RE) input that can be used to control the repeater function. This enables the user to isolate a portion of the bus for testing or maintenance purposes or to conserve power by disabling the repeater when it's not in use. The PCA9509PGM,125 is packaged in a small TSSOP8 (PG-TSSOP8-8) package, which makes it suitable for space-constrained applications.

In summary, the NXP PCA9509PGM,125 is a versatile, easy-to-use I2C-bus repeater that ensures reliable communication and data integrity across devices with different voltage levels. Its features make it an excellent choice for a wide range of applications, including consumer electronics, mobile devices, and industrial control systems.
