The NXP PCA9622DR,118 is a sophisticated LED driver integrated circuit (IC) designed to control and drive multiple LEDs with precision and efficiency. This IC is part of NXP's extensive portfolio of lighting solutions, which are known for their reliability and performance in a wide range of applications.

Key Features

• Output Configuration: The PCA9622DR,118 provides 16 constant current output channels, making it ideal for managing multiple LEDs within a system.
• Supply Voltage: It operates with a supply voltage ranging from 2.3V to 5.5V, catering to various power requirements and ensuring compatibility with both low and high voltage systems.
• Programmable Current: Each output can be programmed to sink up to 25 mA, allowing for precise control over the brightness of connected LEDs.
• Group Dimming and Blinking: This IC supports group dimming and blinking that can be programmed via the I2C-bus interface, offering additional flexibility for dynamic lighting effects.
• 1 MHz Fast-mode Plus I2C-bus Interface: The inclusion of a Fast-mode Plus I2C-bus interface enables high-speed communication and swift responsiveness in applications where timing is critical.
• Error Detection: Built-in error detection features such as open LED detection and under-voltage lockout ensure safe and reliable operation.
• Thermal Shutdown: The IC also incorporates a thermal shutdown feature for additional protection against overheating.

Applications

The PCA9622DR,118 is suited for a broad array of lighting applications, including:

• LED displays and signage
• Backlighting for LCD TVs and monitors
• Automotive interior and exterior lighting
• General purpose LED illumination

Package and Quality

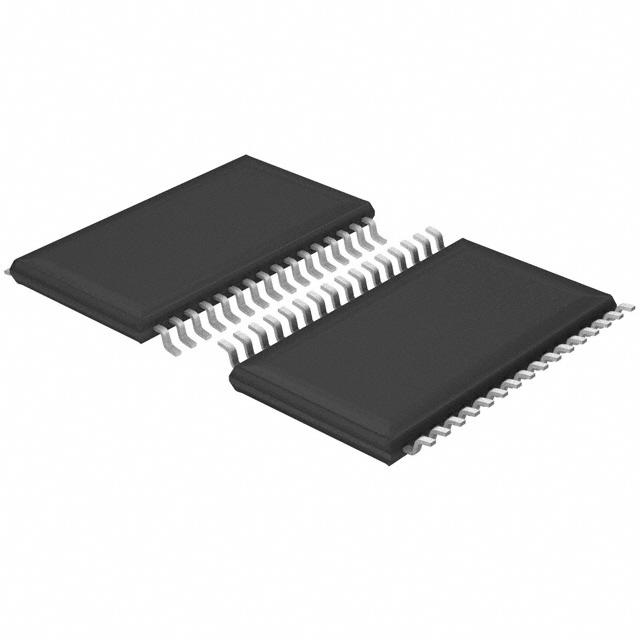

The device comes in a compact TSSOP28 package, which allows for a reduced footprint on printed circuit boards (PCBs). NXP's commitment to quality is evident in the PCA9622DR,118, which is designed to meet the rigorous standards required for industrial and automotive applications, ensuring long-term reliability and performance.
