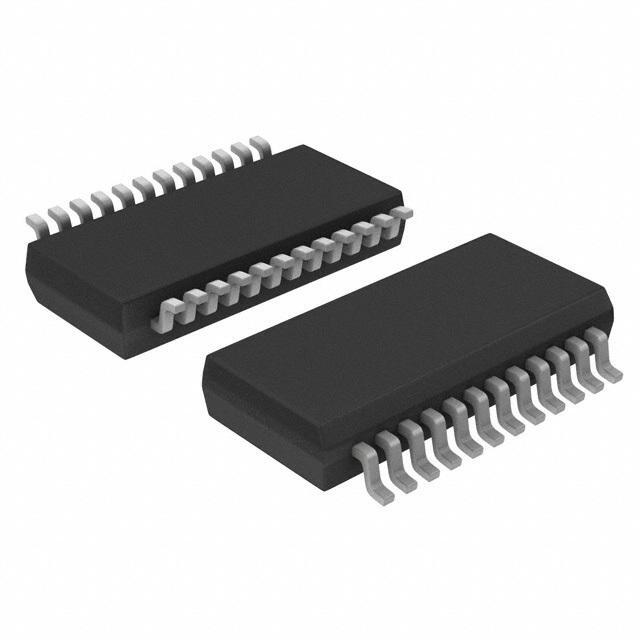

Introducing the PCA9673DK,118 from NXP Semiconductors

The PCA9673DK,118 is a robust and versatile 16-bit I/O expander from the reputable NXP Semiconductors, designed to provide additional I/O capabilities to microcontrollers over the I²C-bus. This product is an ideal solution for applications where additional inputs/outputs are necessary, especially when the main controller has limited I/O pins available.

Key Features

• Interface: The device features an I²C-bus interface, supporting both the Standard-mode (100 kHz) and Fast-mode (400 kHz) I²C protocol for communication with the host controller, ensuring easy integration into most embedded systems.
• Expandability: Up to eight PCA9673 devices can be connected to the same I²C-bus, offering a possibility of expanding the system by an additional 128 I/Os.
• Voltage Range: The PCA9673DK,118 operates within a supply voltage range of 2.3V to 5.5V, making it suitable for a wide array of applications, including those that run on battery power.
• Output Current: Each I/O can sink or source up to 25 mA, providing the flexibility to drive LEDs or other low-power devices directly.
• Configurability: All I/Os are configurable, allowing them to be used as either inputs or outputs. This feature provides designers with the flexibility to adapt the expander to the needs of their specific application.
• Interrupt Function: An interrupt output is provided, which can be configured to reflect the status of the inputs, thereby reducing the need for the microcontroller to continuously poll the expander.
• Power-On Reset: The I/Os are initialized as inputs with a high-impedance state after power-on reset, minimizing the risk of unintended operations at startup.

Applications

The PCA9673DK,118 is suitable for a wide range of applications, including but not limited to:

• Server motherboards
• Industrial control systems
• Home automation
• LED displays and signage
• Embedded systems requiring additional I/O ports

With its robust feature set and ease of use, the PCA9673DK,118 from NXP Semiconductors is a perfect choice for designers looking to expand the capabilities of their systems without the need for complex and costly redesigns.
