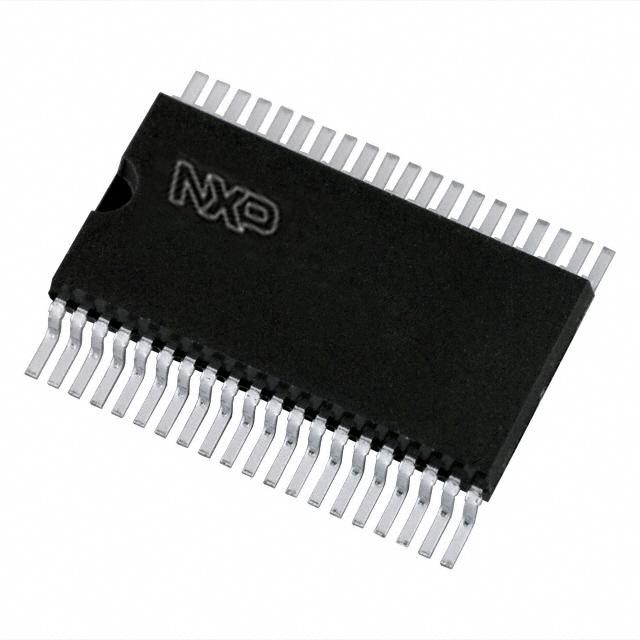

Overview of NXP PCF8566TS/1,118

The NXP PCF8566TS/1,118 is a highly versatile and efficient Universal LCD driver designed to drive dot matrix graphic displays at low multiplex rates. It is a powerful solution for applications that require a high level of visual representation, such as handheld devices, instrumentation panels, and control interfaces.

Key Features

• Display Control: The device is capable of controlling large LCD panels with up to 24 segment outputs and 4 common outputs. This allows designers to create displays with a variety of characters and symbols to enhance user interaction.
• Interface Flexibility: It features an I²C-bus interface, which makes it easy to integrate with microcontrollers and other digital systems. This provides a simple and efficient way to send display data and control instructions to the LCD driver.
• Low Power Consumption: Designed with power efficiency in mind, the PCF8566TS/1,118 is ideal for battery-operated devices. It operates with a low power consumption, thus extending the battery life of the products it's used in.
• Multiplex Capability: It supports a range of multiplex rates, which makes it adaptable to different types of LCD panels and allows for a clear display of information.

Applications

The PCF8566TS/1,118 is suitable for a wide range of applications, including:

• Portable instruments
• Car radios
• Medical equipment
• Home appliances
• Industrial control systems

Technical Specifications

The device comes in a TSSOP package, which is known for its compact footprint, making it ideal for space-constrained applications. It operates over a wide temperature range, ensuring reliability and performance under varying environmental conditions.

Quality and Reliability

NXP Semiconductors is a trusted name in the industry, known for its commitment to quality and reliability. The PCF8566TS/1,118 is manufactured to meet high standards, ensuring that it performs consistently and is robust enough to withstand the demands of modern electronic devices.

With its combination of features, the NXP PCF8566TS/1,118 offers a dynamic solution for driving graphic LCD displays, contributing to the development of user-friendly and energy-efficient electronic products.
