Overview of NXP PESD5V0S2UQ ESD Protection Diode

The NXP PESD5V0S2UQ is a state-of-the-art ESD protection diode designed to safeguard high-speed data lines and other sensitive electronic circuits from the harmful effects of Electrostatic Discharge (ESD). This compact and efficient device is an essential component for modern electronics where reliability and protection against transient voltage spikes are crucial.

Key Features

• Bi-directional ESD protection: The PESD5V0S2UQ provides protection for one data line from ESD pulses in both directions, ensuring comprehensive coverage against transient events.
• Low clamping voltage: With a low clamping voltage, this diode ensures that any excess voltage is quickly and effectively suppressed, minimizing the risk of damage to the protected component.
• Ultra-low capacitance: The ultra-low capacitance of the diode, typically just 0.3 pF, makes it ideal for protecting high-speed data lines without compromising signal integrity.
• High surge current capability: It can handle a surge current of up to 5 A (8/20 μs pulse), providing robust protection against high-energy transients.

Applications

The versatility of the NXP PESD5V0S2UQ makes it suitable for a wide range of applications. It is particularly well-suited for:

• USB 2.0 power and data line protection
• Protection of HDMI, MIPI, and other high-speed data lines
• Mobile phones, tablets, and portable electronics
• Wireless communication systems
• Computers and peripherals

Package and Installation

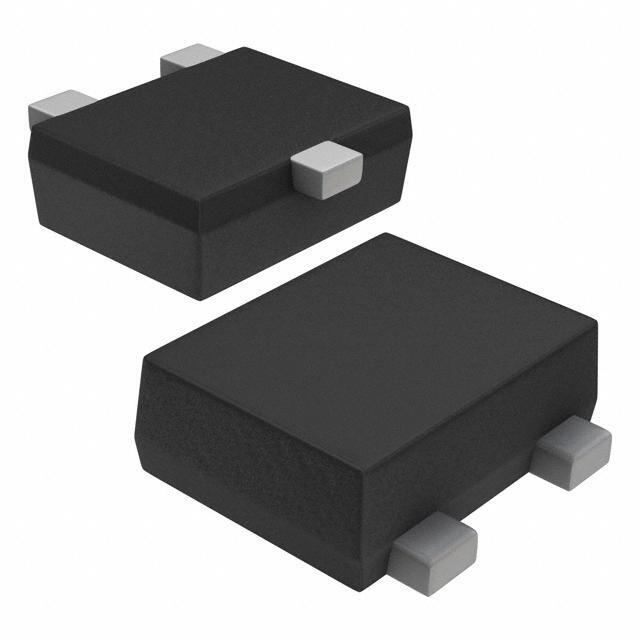

The PESD5V0S2UQ comes in an ultra-small DFN1006-2 (SOD882) leadless package, which not only saves valuable board space but also provides excellent thermal and electrical characteristics. Its small footprint and low profile make it especially suitable for compact devices where space is at a premium. Installation is straightforward, with the surface-mount package allowing for efficient assembly and integration into PCB designs.

Conclusion

In summary, the NXP PESD5V0S2UQ is a high-performance ESD protection solution that combines low capacitance, high surge current capability, and a tiny form factor. Whether it's for personal electronics or industrial applications, this ESD protection diode is engineered to provide reliable protection, ensuring the longevity and robustness of sensitive electronic components.
