Introducing the PSMN1R3-30YL MOSFET from NXP Semiconductors

The PSMN1R3-30YL is a high-performance, low-voltage Power-SO8 MOSFET brought to you by NXP Semiconductors, a leader in the electronics industry. This product is designed to meet the increasing demands of power efficiency and energy management in modern electronic applications. The PSMN1R3-30YL is an ideal choice for a wide range of applications, including DC-DC converters, motor drives, and power management systems.

Key Features

• Low On-Resistance: The PSMN1R3-30YL boasts an extremely low on-resistance (R<sub>DS(on)) of just 1.3 mΩ at a gate drive of 10 V, which significantly reduces conduction losses and improves overall efficiency.
• High Continuous Drain Current: With a robust continuous drain current (I<sub>D) of 100 A, this MOSFET can handle high current loads, making it suitable for demanding power applications.
• Low Threshold Voltage: A low threshold voltage ensures that the MOSFET can be driven at lower gate voltages, which is beneficial for battery-operated devices and low voltage applications.
• Reduced Power Dissipation: Thanks to its optimized design, the PSMN1R3-30YL minimizes power dissipation, which extends the life of the product and the applications it powers.

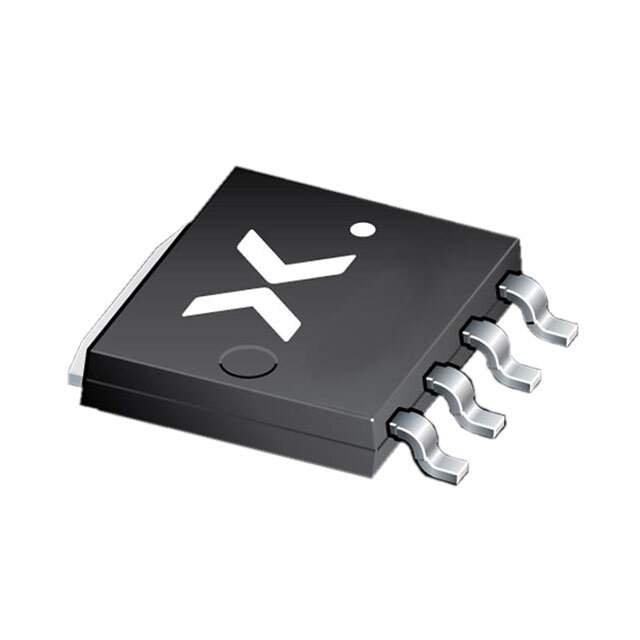

• Enhanced Durability: The MOSFET is encapsulated in a rugged Power-SO8 package, which provides excellent thermal and mechanical performance.

Applications

The versatility of the PSMN1R3-30YL allows it to be used in a variety of applications. It is particularly well-suited for:

• Switch Mode Power Supplies (SMPS)
• Power inverters and converters
• Brushed and brushless motor control
• Battery management systems
• Load switches and power distribution

Quality and Reliability

NXP Semiconductors is committed to providing high-quality and reliable products. The PSMN1R3-30YL MOSFET is no exception, as it is built to meet the stringent requirements of industrial and automotive standards. Its performance is characterized by a wide operating temperature range and a robust package design, ensuring reliable operation under harsh conditions.

With the PSMN1R3-30YL, NXP Semiconductors continues to push the boundaries of power efficiency and reliability, offering a product that not only enhances the performance of your applications but also contributes to a greener and more sustainable future.
