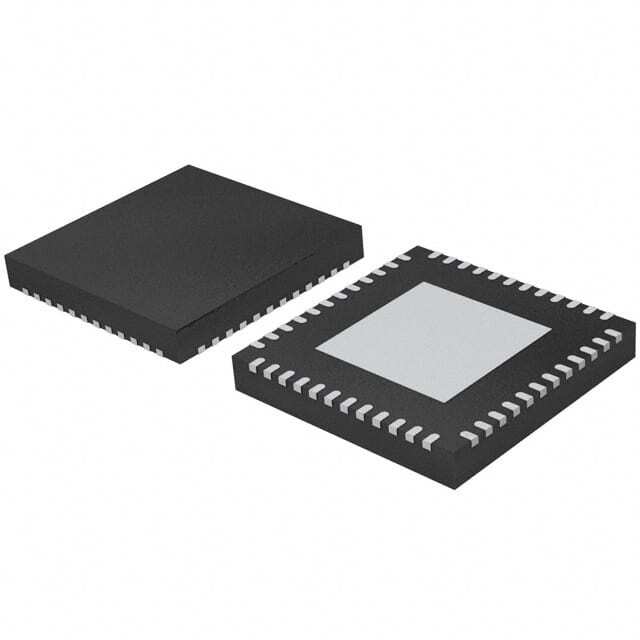

The SC16C554BIBS,551 is a high-performance quad Universal Asynchronous Receiver/Transmitter (UART) from NXP Semiconductors, designed to fulfill the needs of serial communication in embedded systems. This integrated circuit provides four independent UART channels in a single package, making it an ideal choice for applications where board space is at a premium and multiple serial ports are required.

Key Features

• Multiple Channels: Four full-duplex UART channels allow for simultaneous communication with multiple peripherals.
• Enhanced Baud Rate: It supports baud rates up to 5 Mbps, enabling high-speed data transfer for demanding applications.
• FIFO Buffers: Each UART channel is equipped with 16-byte transmit and receive FIFOs, which help to reduce the overhead of CPU data management.
• Flexible Character Length: The SC16C554BIBS,551 can be programmed for 5-, 6-, 7-, or 8-bit character lengths to accommodate various data protocols.
• Modem Control: Integrated modem control functions allow for full management of modem handshake signals when used in RS-232 applications.
• Programmable Baud Rate Generator: The baud rate generator can be programmed to select any baud rate when used with an external clock input.

Applications

This versatile UART IC is suitable for a wide range of applications in various industries. It's particularly useful in:

• Industrial control systems
• Point of sale terminals
• Networking equipment
• Computer peripheral interfacing
• Telecommunication systems

Technical Specifications

The SC16C554BIBS,551 operates at a voltage range of 2.3V to 5.5V, which allows for flexibility in different system power schemes. It is available in a compact 64-LQFP (Low-profile Quad Flat Package) that is conducive to space-constrained designs.

Conclusion

With its robust set of features and multiple UART channels, the SC16C554BIBS,551 from NXP is a highly efficient solution for managing serial communications in complex embedded systems. Its high-speed capabilities and flexible configurations make it a go-to choice for engineers seeking to optimize their designs for performance and space.
