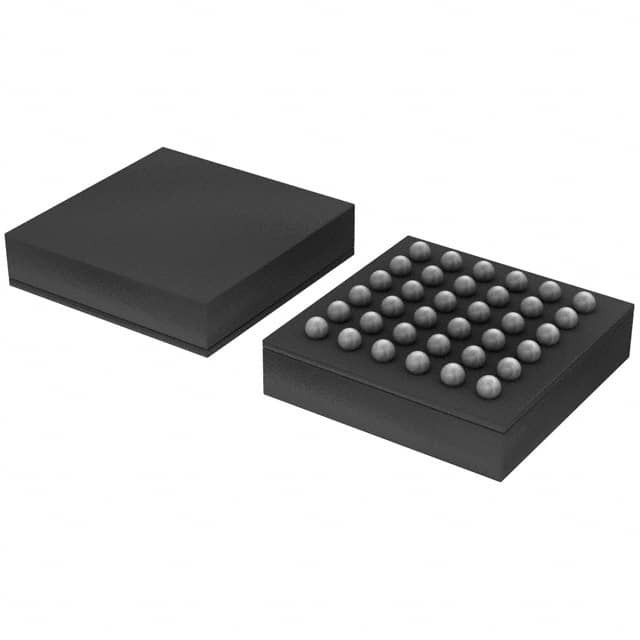

NXP SC16C852LIET,157 Dual UART Interface

The NXP SC16C852LIET,157 is a high-performance, dual-channel Universal Asynchronous Receiver/Transmitter (UART) interface IC that is designed to meet the demanding requirements of modern communication systems. This versatile component is a perfect solution for applications requiring multiple UART channels in a compact package, and it is well-suited for industrial, automotive, and consumer markets where reliable data transmission is critical.

With its enhanced features, the SC16C852LIET,157 offers significant improvements over single-channel UARTs and older dual UART designs. It provides two independent UART channels, each with a set of registers and FIFOs that allow the device to handle serial data communication efficiently. The FIFOs are 128 bytes deep, which helps reduce the overhead of service routines in processor-based systems and improves overall system throughput.

The SC16C852LIET,157 operates at a voltage range of 2.3V to 3.6V, making it suitable for low-power applications. It supports baud rates up to 5 Mbps, ensuring high-speed data transfer for applications that require fast communication links. The device also features an Infrared Data Association (IrDA) mode for infrared communication, which provides additional flexibility for wireless data transmission.

One of the standout features of this UART is its support for enhanced functions such as automatic hardware (RTS/CTS) and software (XON/XOFF) flow control. This feature ensures seamless data flow and prevents data loss during high-speed transmissions. Additionally, the SC16C852LIET,157 is equipped with a fractional baud rate generator, which allows precise baud rate selection to match specific communication requirements.

The component is housed in a compact LQFP-48 package, which minimizes the board space required and is ideal for space-constrained applications. Its industrial temperature range of -40°C to +85°C ensures reliable operation even in harsh environments.

In summary, the NXP SC16C852LIET,157 is a robust and versatile dual UART interface that offers advanced features for reliable serial communication in a variety of applications. Its high data throughput capability, low power consumption, and small form factor make it an excellent choice for designers looking to enhance their communication systems.
