The TDA8566TH/N2C,118 is a high-performance integrated circuit produced by NXP Semiconductors, renowned for its superior audio amplification capabilities. This IC is designed specifically for automotive and consumer audio applications, providing a robust solution for driving speakers with excellent sound quality.

As a part of the TDA8566 series, this amplifier is a 2 x 40 W/2 Ω stereo BTL car radio power amplifier with differential inputs and diagnostic outputs. It operates over a wide supply voltage range and is protected against all sorts of adverse conditions like short-circuit, overtemperature, and ground faults, which makes it exceptionally reliable for use in challenging automotive environments.

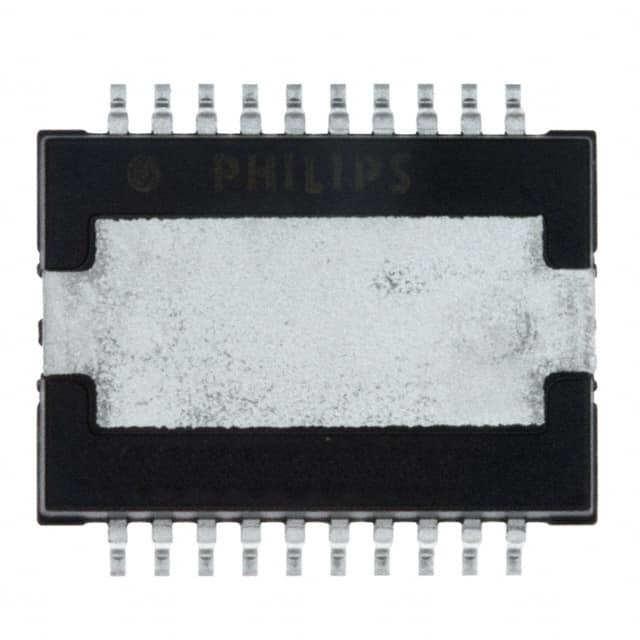

The TDA8566TH/N2C,118 comes in a DBS27P (SOT411-1) package, which is designed to optimize thermal performance, ensuring stable operation throughout its service life. Its flexibility in load impedance allows it to drive both 4 Ω and 2 Ω speakers, providing versatility in system design. Additionally, it features a standby mode, which helps in reducing power consumption when not in active use.

Key features of the TDA8566TH/N2C,118 include its diagnostic facility, which provides feedback on the status of the amplifier and the speakers, and its ability to operate without a bootstrap capacitor, which simplifies the circuit design and reduces overall system cost. Furthermore, it is equipped with a mute function that can be controlled via I²C bus or directly, allowing for easy integration into complex systems.

For designers and engineers looking for a reliable, high-quality audio amplification solution, the TDA8566TH/N2C,118 by NXP Semiconductors is an excellent choice. Its robust construction, advanced protection features, and superior audio performance make it a go-to component for automotive audio systems and other demanding applications.
