Introducing the NXP TJA1029T: High-Speed CAN Transceiver

The TJA1029T is a cutting-edge CAN (Controller Area Network) transceiver from NXP Semiconductors designed to provide reliable communication in automotive and industrial applications. This transceiver is part of NXP's high-performance TJA1029 family and is specifically engineered to facilitate high-speed data transmission with robust signal integrity.

Key Features of the TJA1029T

• ISO 11898-2 Compliant: The device adheres to the stringent requirements of the ISO 11898-2 standard, ensuring compatibility with the high-speed CAN specification.
• Low Power Mode: An integrated standby mode significantly reduces power consumption when the network is idle, making the TJA1029T an energy-efficient choice for battery-operated systems.
• Bus Fault Protection: The transceiver offers protection against bus faults and short circuits, providing resilience in harsh electrical environments.
• Differential Receiver with Wide Common-Mode Range: This feature allows the TJA1029T to maintain communication even in the presence of large ground offsets, which are common in automotive powertrains and industrial networks.
• Thermal Protection: The device includes thermal shutdown protection to prevent damage from overheating, enhancing its reliability and longevity.

Applications

The TJA1029T is ideally suited for a wide range of applications where high-speed data communication is critical. It is commonly used in:

• Automotive control units
• Advanced driver-assistance systems (ADAS)
• Industrial automation systems
• Medical equipment
• Heavy machinery

Technical Specifications

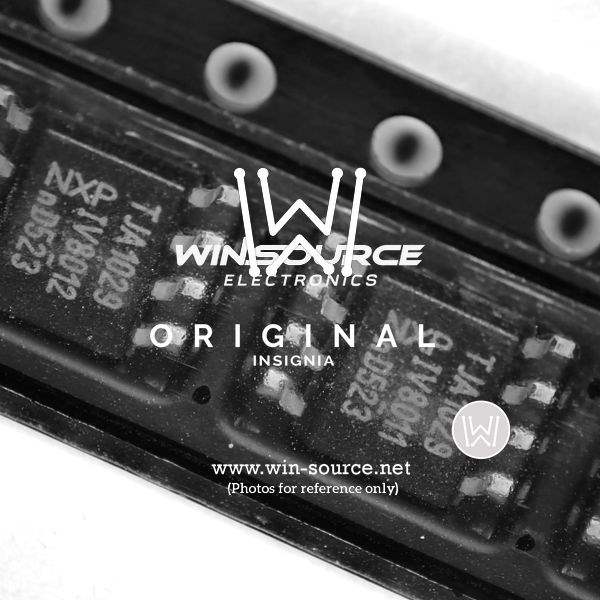

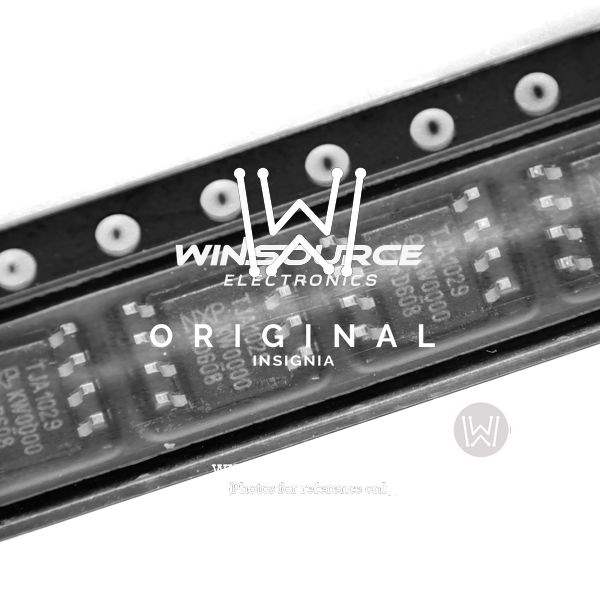

The TJA1029T operates over a broad temperature range and is available in a compact SO-8 package. It supports a data rate of up to 1 Mbps and is designed to handle the differential signaling used in CAN networks. With its built-in fail-safe features and low-power operation, the TJA1029T is a robust solution that meets the demands of modern high-speed communication protocols.

For engineers and system designers seeking a reliable CAN transceiver with advanced features, the NXP TJA1029T represents a superior choice that balances performance with power efficiency.
