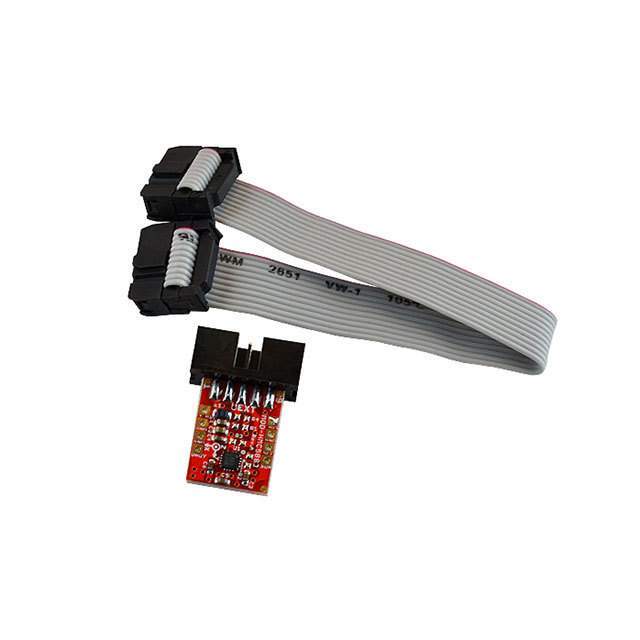

MOD-HMC5883L Olimex LTD
Same model may have multiple batches, images only for reference.

MOD-HMC5883L

Part No MOD-HMC5883L
Manufacturer Olimex LTD
Catalog Evaluation Boards - Expansion Boards
Description UEXT BOARD HMC5883L COMPASS / 3-AXIS DIGITAL COMPASS WITH 12-BIT ADC
Datasheet
MOD-HMC5883L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Olimex LTD
Platform UEXT
Type Sensor
Function Compass
Utilized IC / Part HMC5883L
Contents Board
Win Source Part Number 776132-MOD-HMC5883L
Popularity Medium
Supply and Demand Status Balance
Family Name MOD-HMC5883L
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian MOD-HMC5883L CAD Model

Description

The MOD-HMC5883L board is a compass sensor used for determining the direction of the magnetic field.

  • IC/Part: HMC5883L
  • Category: Development Boards, Kits, Programmers
  • Platform Compatibility: UEXT
  • Contents: Board
  • Estimated EOL Date: 2030
