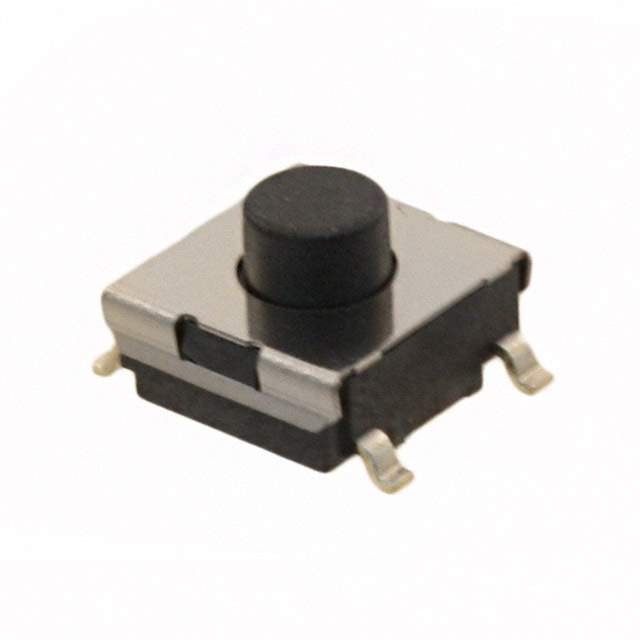

B3FS-1010P Real Image
Same model may have multiple batches, images only for reference.

B3FS-1010P

Part No B3FS-1010P
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V
Datasheet
B3FS-1010P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.30mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100gf
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 68774-B3FS-1010P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B3FS-1010P CAD Model

Description

Description

The B3FS-1010P is a high-quality tactile switch designed for diverse electronic applications. With its compact design and reliable performance, it's an ideal choice for user interface panels and other interactive devices.

Features and Benefits

  • Compact Size: Allows for space-saving design in compact electronic devices.
  • High Durability: Provides a long lifespan with reliable performance.
  • Easy-Mounting: Simplifies the assembly process with straightforward installation.

Applications

  • Consumer Electronics
  • Industrial Control Panels
  • Medical Devices
  • Automotive Interface
