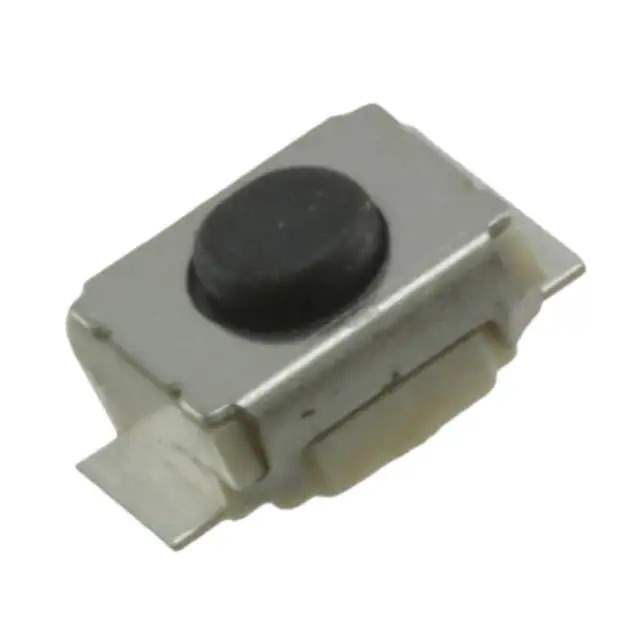

B3U-1100P-B Real Image
Same model may have multiple batches, images only for reference.

B3U-1100P-B

Part No B3U-1100P-B
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3U
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 1.60mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 3.00mm x 2.50mm
Illumination Non-Illuminated
Operating Force 153gf
Ingress Protection Dust Proof
Features Grounding Pin
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.15mm
Mechanical Life 200,000 Cycles
Base Product Number B3U
Standard Package 3,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 863085-B3U-1100P-B
Ultra Librarian 3D Model Ultra Librarian B3U-1100P-B CAD Model

Description

The Omron B3U-1100P-B tactile switch is a surface mount switch with a compact design.

  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Switch Travel: 0.15mm
  • Operating Force: 153gf
  • Contact Rating: 0.05A @ 12VDC
  • Dustproof: Yes
  • Temperature Range: -25°C to 70°C
  • Package: Tape & reel
  • Series: B3U series from Omron
