Same model may have multiple batches, images only for reference.

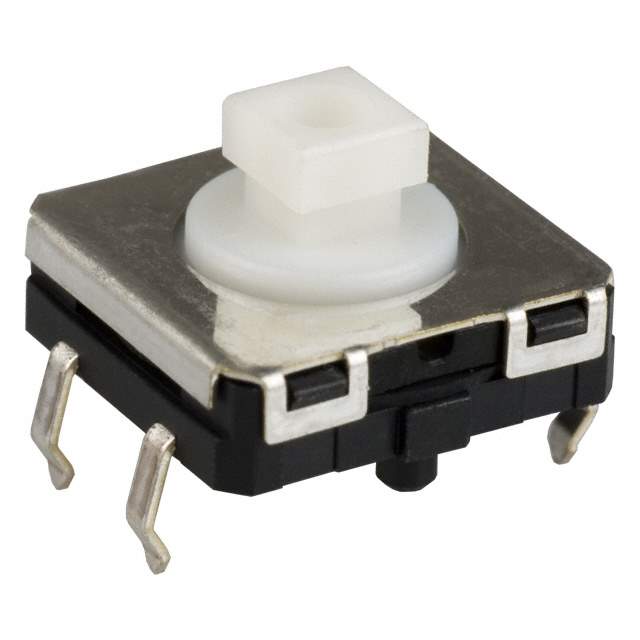

B3W-4050 Real Image
Same model may have multiple batches, images only for reference.

B3W-4050

Part No B3W-4050
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
B3W-4050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Plunger for Cap
Mounting Through Hole
Actuator Height off PCB, Vertical 7.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 12.00mm x 12.00mm
Illumination Non-Illuminated
Operating Force 200gf
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.30mm
Mechanical Life 3,000,000 Cycles
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number B3W 4050M,Q3902048,B3W4050BYOMZ,B3W4050,SW422,B3W-4050BYOMZ
Standard Package 500
Win Source Part Number 1323790-B3W-4050
Ultra Librarian 3D Model Ultra Librarian B3W-4050 CAD Model

Description

The Omron Electronics Inc-EMC Div B3W-4050 tactile switch is a through-hole switch with SPST-NO circuitry.

  • Actuator Type: Plunger for Cap
  • Actuation Orientation: Top
  • Switch Travel: 0.30mm
  • Operating Force: 200gf
  • Switch Function: Off-Mom
  • Contact Rating: 0.05A @ 24VDC
  • Mechanical Life: 3,000,000 cycles
  • Actuator Height off PCB: 7.30mm
  • Switch Outline: 12.00mm x 12.00mm
  • Illumination: Non-Illuminated
  • RoHS Compliant: Yes
