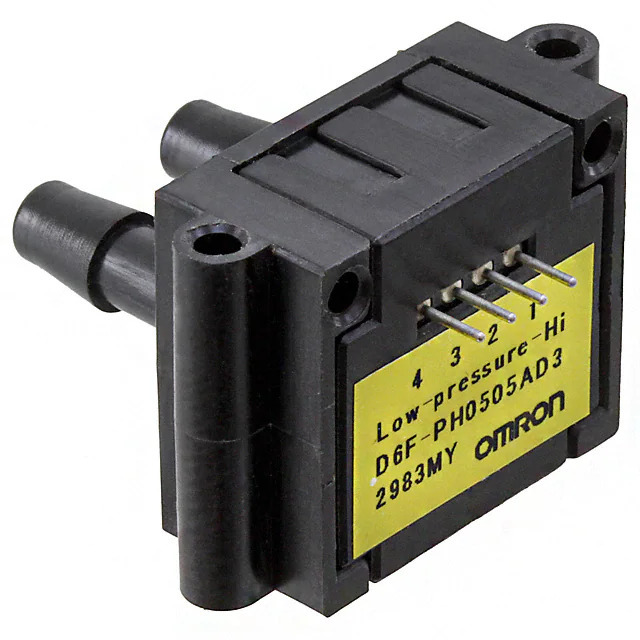

D6F-PH0505AD3 Omron
Same model may have multiple batches, images only for reference.

D6F-PH0505AD3

Part No D6F-PH0505AD3
Manufacturer Omron
Catalog Pressure Sensors, Transducers
Description SENSOR 0.01PSID 0.19" 12BIT 4SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Omron Electronics Inc-EMC Div
Series D6F-PH
Package Bulk
Product Status Active
Pressure Type Differential
Operating Pressure -0.01 ~ 0.01PSI (-0.05 ~ 0.05kPa)
Output Type I²C
Output 12 b
Accuracy ±3%
Voltage - Supply 2.3V ~ 3.6V
Port Size Male - 0.19" (4.93mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 1.45PSI (10kPa)
Temperature Range - Operating -20°C ~ 80°C
Mounting Type Through Hole
Package / Case 4-SIP, Dual Top Ports
Supplier Device Package 4-SIP
Base Product Number D6F-PH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.10.2040
Win Source Part Number 1375630-D6F-PH0505AD3
Ultra Librarian 3D Model Ultra Librarian D6F-PH0505AD3 CAD Model

Description

The Omron D6F-PH0505AD3 is a temperature-compensated pressure sensor suitable for various applications.

  • Operating Temperature: -20°C ~ 80°C
  • Output Type: I²C
  • Voltage - Supply: 2.3V ~ 3.6V
  • Output: 12b
  • Pressure Type: Differential
  • Operating Pressure: -0.01 PSI ~ 0.01 PSI (-0.05 kPa ~ 0.05 kPa)
  • Max Pressure: 1.45 PSI (10 kPa)
  • Package / Case: 4-SIP, Dual Top Ports
  • Port Style: Dual Top
  • Status: Active
