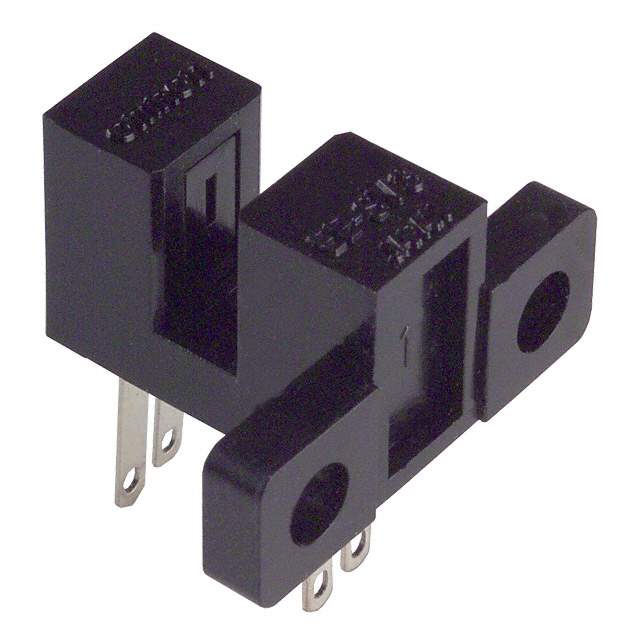

The EE-SV3 is an optical sensor used for detecting the presence or absence of an object.

• Type: Optical Sensor
• Function: Detecting the presence or absence of an object
• Sensing Method: Through-beam
• Sensing Distance: 0.134 inches (3.4mm)
• Output Configuration: Phototransistor
• Response Time: 4 microseconds
• Voltage - Collector Emitter Breakdown (Max): 30V
• Current - Collector (Ic) (Max): 20mA
• Current - DC Forward (If) (Max): 50mA
• Mounting Type: Chassis Mount
• Temperature Range: -25°C to 85°C
• Package: Module connector, slot type
• Alternative Part Cross-Reference: EE-SX1071, EESH3B, EE-SH3EESV3
• Status: Obsolete
• ECCN: EAR99
