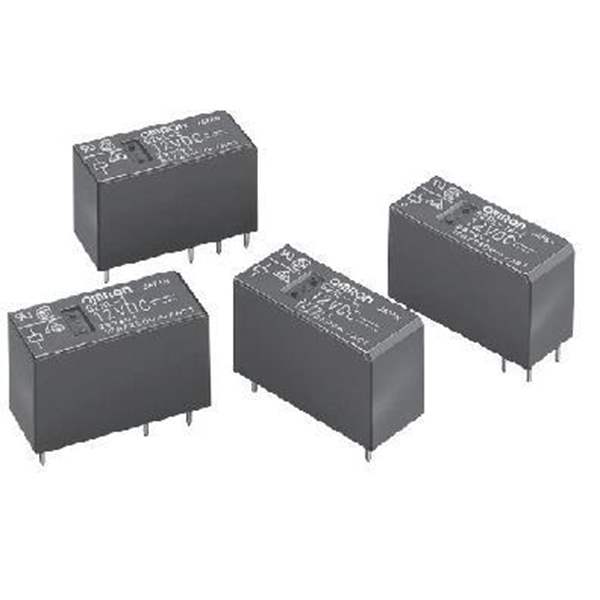

G2RL-1-E-DC24 Omron – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

G2RL-1-E-DC24

Part No G2RL-1-E-DC24
Manufacturer Omron
Catalog Relays
Description General Purpose Relays SPDT 24VDC Hi-Cap. Flux Protect ClassF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Omron
Product Power Relays
Type Low Profile
Coil Voltage 24 VDC
Relay Contact Form 1 Form C (SPDT-NO, NC)
Contact Current Rating 16 A
Contact Termination Solder Pin
Mounting Style Through Hole
Switching Voltage 440 VAC, 300 VDC
Coil Termination Solder Pin
Coil Type Non-Latching
Coil Resistance 1.44 kOhms
Coil Current 16.7 mA
Contact Material Silver Alloy (Ag)
Series G2RL
Length 29 mm
Width 12.7 mm
Height 15.7 mm
Contact Form SPDT (1 Form C)
Power Consumption 400 mW
Brand Omron Electronics
Product Type General Purpose Relays
Standard Pack Qty 100
Subcategory Relays
Ultra Librarian 3D Model Ultra Librarian G2RL-1-E-DC24 CAD Model
