Same model may have multiple batches, images only for reference.

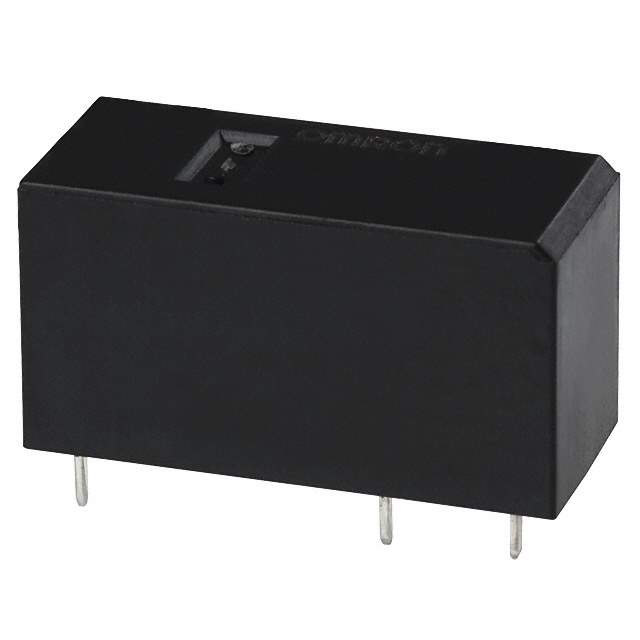

G2RL-14 DC24 Real Image
Same model may have multiple batches, images only for reference.

G2RL-14 DC24

Part No G2RL-14 DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2RL
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12 A
Switching Voltage 440VAC, 300VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Base Product Number G2R
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1316046-G2RL-14 DC24
Ultra Librarian 3D Model Ultra Librarian G2RL-14 DC24 CAD Model

Description

The Omron G2RL-14 DC24 power relay is a reliable and efficient component that is perfect for use in various industrial applications.

  • Circuit: Single-Pole Double-Throw (SPDT)
  • Contact Rating (Current): 12A
  • Switching Voltage: 440VAC or 300VDC
  • Coil Voltage: 24VDC
  • Coil Current: 16.7mA
  • Operate Time: 15ms
  • Release Time: 5ms
