Same model may have multiple batches, images only for reference.

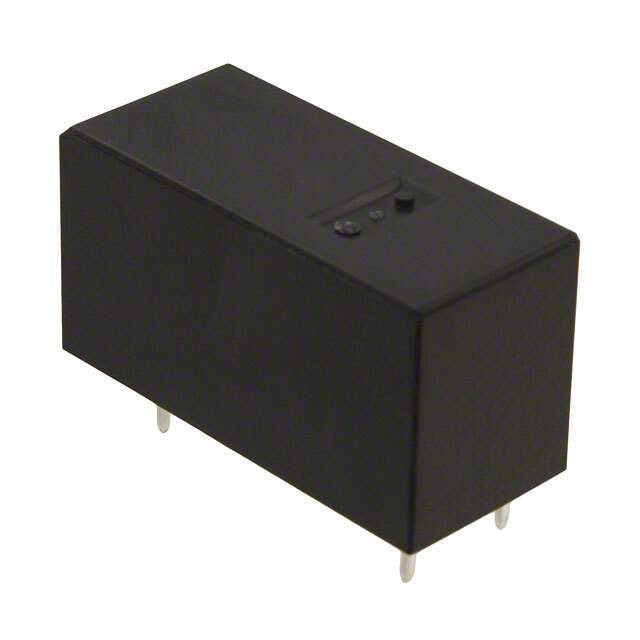

G2RL-1A4-E DC12 Real Image
Same model may have multiple batches, images only for reference.

G2RL-1A4-E DC12

Part No G2RL-1A4-E DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V  /  General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2RL
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 440VAC, 300VDC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number G2R
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Other Names G2RL1A4E12DC,G2RL1A4EDC12BYOMB,G2RL1090E,G2RL-1A4-E-DC12,G2RL1A4EDC12,Z3083,G2RL-1A4-E DC12 BY OMB,G2RL-1A4-E-DC12-ND
Standard Package 100
Win Source Part Number 1002801-G2RL-1A4-E DC12
Ultra Librarian 3D Model Ultra Librarian G2RL-1A4-E DC12 CAD Model

Description

The Omron G2RL-1A4-E DC12 power relay is a non-latching relay with a SPST-NO contact form. The manufacturer is Omron.

  • Type: Power Relay, Non-Latching
  • Contact Form: SPST-NO
  • Contact Rating: 16 A
  • Switching Voltage: 440VAC, 300VDC - Max
  • Coil Voltage: 12VDC
  • Power Consumption: 1.1 W
  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Temperature Range: -40°C to 85°C
  • Mechanical Life: 10,000,000 cycles
  • Packaging: Tube
  • Standard Package: 100
