Same model may have multiple batches, images only for reference.

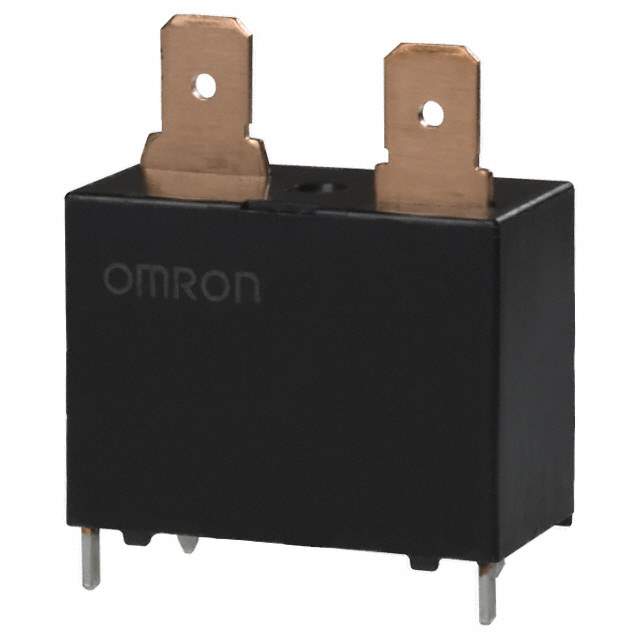

G4A-1A-E DC12 Real Image
Same model may have multiple batches, images only for reference.

G4A-1A-E DC12

Part No G4A-1A-E DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 20A 12V
Datasheet
G4A-1A-E DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Series G4A
Packaging Tray
Relay Type General
Coil Type Non Latching
Coil Current 75mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20A
Switching Voltage 250VAC - Max
Turn On Voltage (Maximum) 8.4 VDC
Turn Off Voltage (Minimum) 1.2 VDC
Operate Time 20ms
Release Time 10ms
Features Sealed - Flux Protection
Mounting Style Through Hole
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Coil Power 900 mW
Coil Resistance 160 Ohms
Operating Temperature Range -20°C ~ 60°C
Win Source Part Number 774934-G4A-1A-E DC12
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G4A-1A-E DC12 CAD Model

Description

The Omron Electronics Inc-EMC Div 774934-G4A-1A-E DC12 is a G4A series general relay with a coil voltage of 12VDC.

  • Series: G4A
  • Coil Voltage: 12VDC
  • Contact Rating: 20A
  • Switching Voltage: 250VAC max
  • Category: Relays
  • Operating Temperature: -20°C to 60°C
  • Sealed: Yes
  • Flux Protection: Yes
  • Contact Form: SPST-NO (1 Form A)
  • Coil Resistance: 160 Ohms
  • Coil Current: 75mA
  • MSL Level: 1 (Unlimited)
  • Popularity: Medium
  • Supply and Demand Status: Limited
