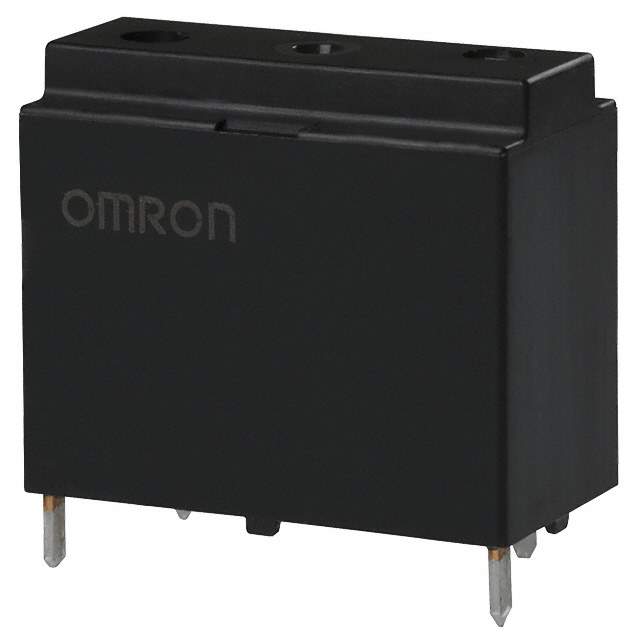

G4A-1A-PE DC5 Real Image
Same model may have multiple batches, images only for reference.

G4A-1A-PE DC5

Part No G4A-1A-PE DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 20A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G4A
Package Tray
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20 A
Switching Voltage 250VAC - Max
Coil Current 180 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -20°C ~ 60°C
Relay Type General Purpose
Coil Resistance 27.8 Ohms
Base Product Number G4A
Standard Package 50
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1351218-G4A-1A-PE DC5
Ultra Librarian 3D Model Ultra Librarian G4A-1A-PE DC5 CAD Model

Description

The Omron G4A-1A-PE DC5 is a power relay designed for general purpose use.

  • Coil Voltage: 5VDC
  • Coil Resistance: 27.8 Ohms
  • Type: Non-Latching
  • Contact Rating: 20A
  • Switching Voltage (Max): 250VAC
  • Contact Form: SPST-NO (1 Form A)
  • Operate Time: 20ms
  • Release Time: 10ms
  • Seal: Flux Protection
  • Mounting Type: Through Hole
  • Temperature Range: -20°C to 60°C
  • Category: Power Relays (Over 2 Amps)
