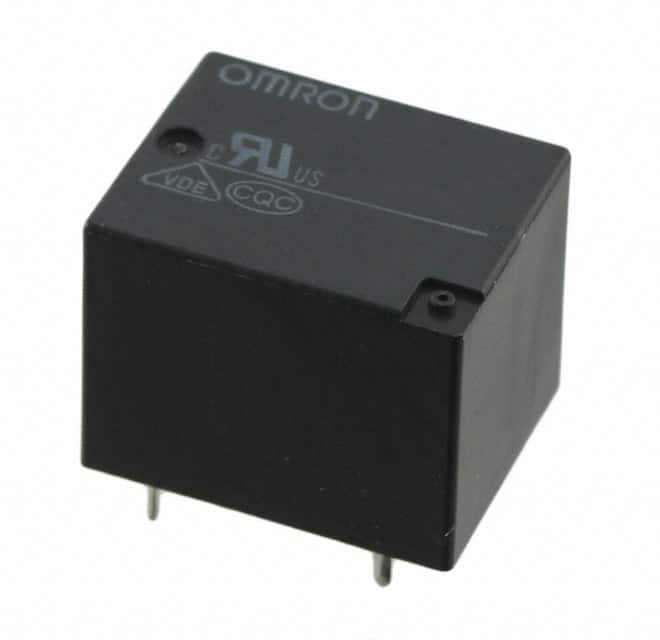

G5LA-1A DC24
Same model may have multiple batches, images only for reference.

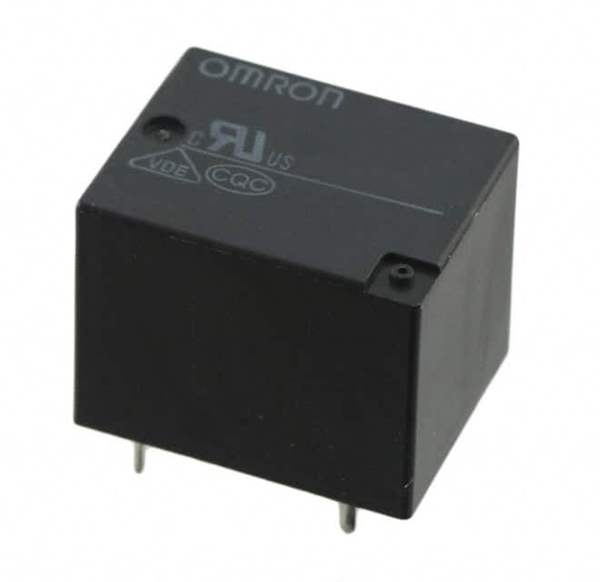

G5LA-1A DC24

Part No G5LA-1A DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Datasheet
G5LA-1A DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron
Series G5LA
Package Tray
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 24VDC - Max
Coil Current 15 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class A
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.6 kOhms
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 872543-G5LA-1A DC24
Ultra Librarian 3D Model Ultra Librarian G5LA-1A DC24 CAD Model

Description

The G5LA-1A DC24 is a SPST-NO (Single Pole Single Throw Normally Open) power relay from Omron. Bold the product name (e.g., BAV99S,135 → G5LA-1A DC24) and manufacturer (e.g., Nexperia USA Inc. → Omron).

  • Circuit: SPST-NO
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.6 kOhms
  • Contact Rating: 10A
  • Switching Voltage: 250VAC and 24VDC maximum
  • Operate Time: 10ms
  • Release Time: 5ms
  • Protection: Sealed with flux protection
  • Mounting Type: Through-hole
  • Series: G5LA
  • Status: Now obsolete
